670144

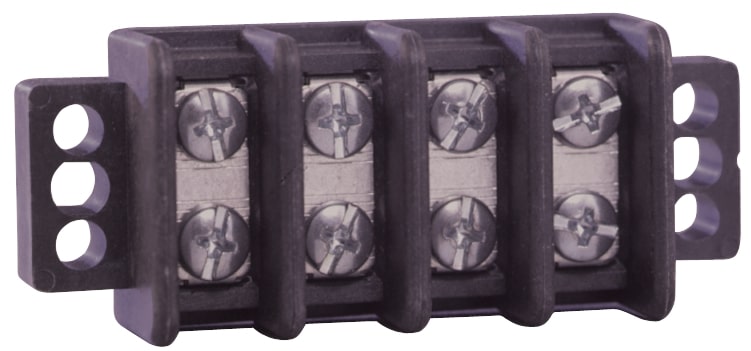

The 4 Position Surface Mount Junction Block is used to splice cables or split primary power into various secondary circuits.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
670144 INFO
Last Updated: 06/09/2022
Specification Details
| Parts per Unit | 1, 25, 5 |
|---|---|
| Features | 4 position Junction Box, For use with 10-22 AWG wire, Rated at 30 amps, Screw type |
| Product Height | 0.81 in |
| SKU | 670144, 670144-005, 670144-025, 670144-2001 |
| RoHS Compliant | Yes |
| Product Width | 1.33 in |
| Product Length | 3.25 in |
| Color | Black |
| Brand | Not branded |
| Voltage | 600 V |
| UL / CSA | No |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| SAE | No |
| Post Size | 5/32 in |
| Polarity | Universal |
| Pack Type | Bag |
| Body Material | Thermoplastic |
| Gauge | 10, 12, 14, 16, 18, 20, 22 |
| Amps | 30 A |
| Product Weight | 0.09 lb |
| Country of Origin | Mexico |
