509417

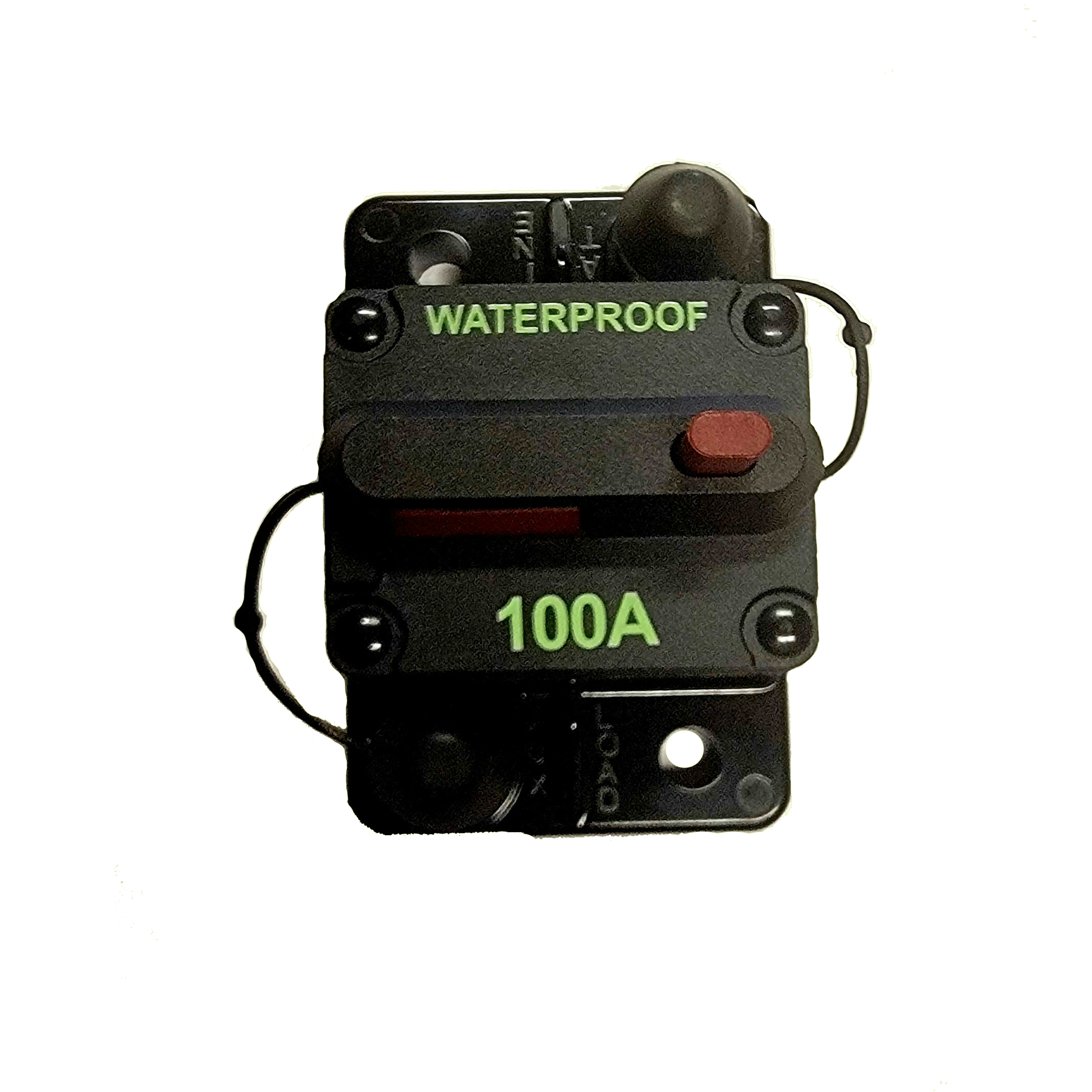

The Manual reset Circuit Breaker is 12/24 volt Type 1 and complies with SAE standard J1625.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

509417-INFO Last Updated: 08/01/2023

Specification Details

Parts per Unit

1

Features

Applications: typically used in auxiliary and accessory circuits-trucks, buses, RVs and marine applications, Housing: thermoset plastic; UL rated 94VO; +320˚F (+155˚ C). Stud insulators are provided on covered units with type F (surface mount) bases, Mounting: panel or surface, Testing: complies with SAE J1625

Product Height

1.94 in

Temperature Range (°F)

-25°F to 198°F

Temperature Range (°C)

-32°C to 92°C

Mount Hole Size

1/4 in

Maximum Voltage

42VDC

Housing Material

Thermoset Plastic

Amps

100 A

Subject to Prop 65

No

Pack Type

Bag

Waterproof

Yes

Voltage

12 V, 24 V

UL / CSA

No

Termination Material

Metal

SAE

J1625

Application

Typically used in auxiliary and accessory circuits-trucks, buses, RVs and marine applications

RoHS Compliant

Yes

Product Width

1.90 in

Product Length

2.94 in

Post Size

1/4 in

Color

Black

Brand

Not branded

Body Material

Plastic

SKU

509417, 509417-001

Product Weight

0.27 lb

Country of Origin

Taiwan
