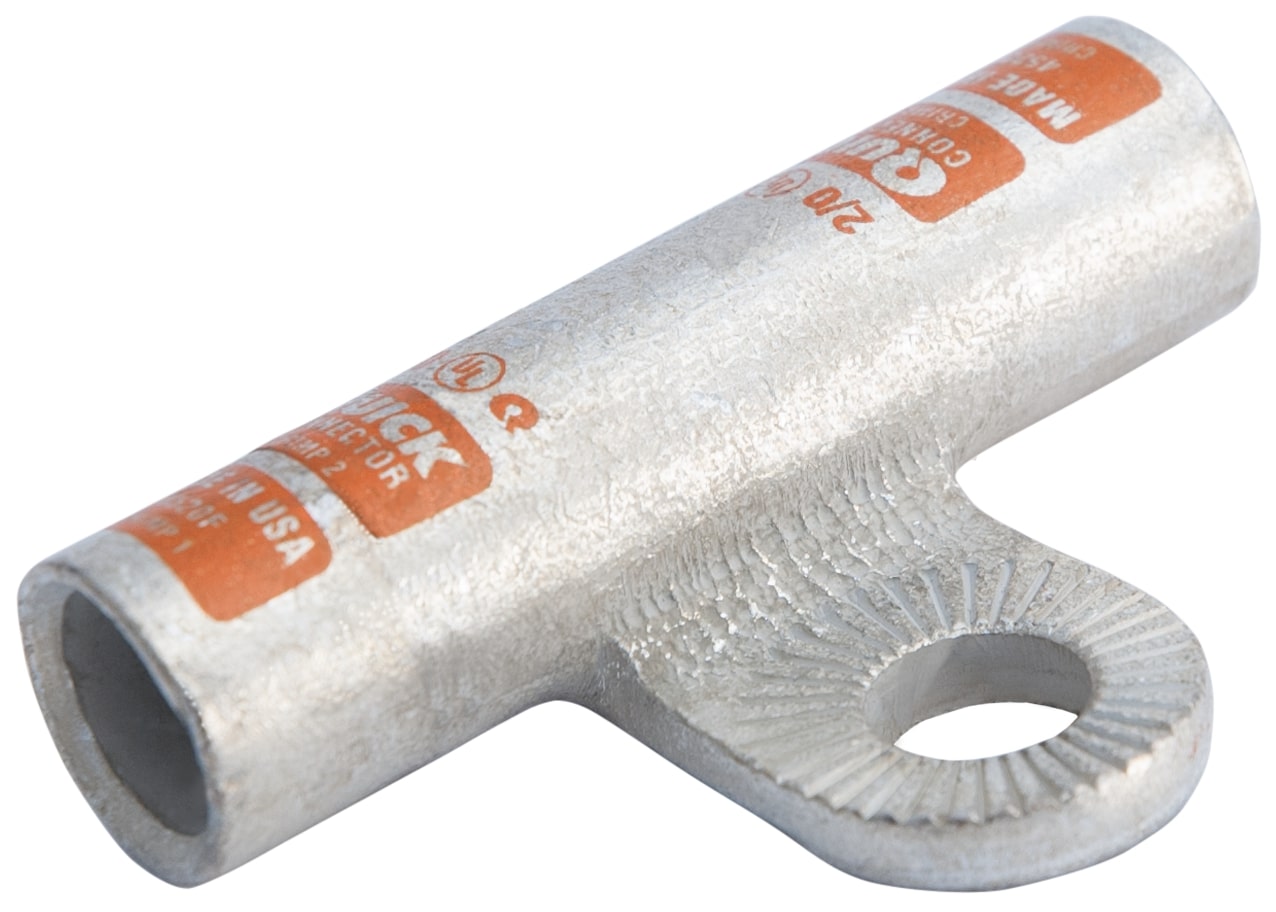

4520F
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | Connectors of different cable gauges can be mixed for maximum application and layout flexibility, Stud battery applications require use of 3/8"–16 closed cap nut, Use with stud batteries, enables multiple battery hook up Stackable, 24-position anti-rotation teeth bite into lead for positive hold |
| Product Height | 0.37 in |
| SKU | 4520-005F, 4520-050F, 4520F |
| RoHS Compliant | Yes |
| Production Process | Cast |
| Product Width | 1.68 in |
| Product Length | 2.50 in |
| Color | Silver |
| Brand | QUICK |
| Works With | Stud Batteries |
| UL / CSA | Yes |
| Termination Method | Crimp |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| Stud Hole Size | 3/8 in |
| SAE | J163, J1811 |
| Plating Material | Tin |
| Pack Type | Bag |
| Gauge | 2/0 |
| Includes | Fasteners |
| Application | Crimp, Solder |
| Product Weight | 0.13 lb |
| Country of Origin | USA |
