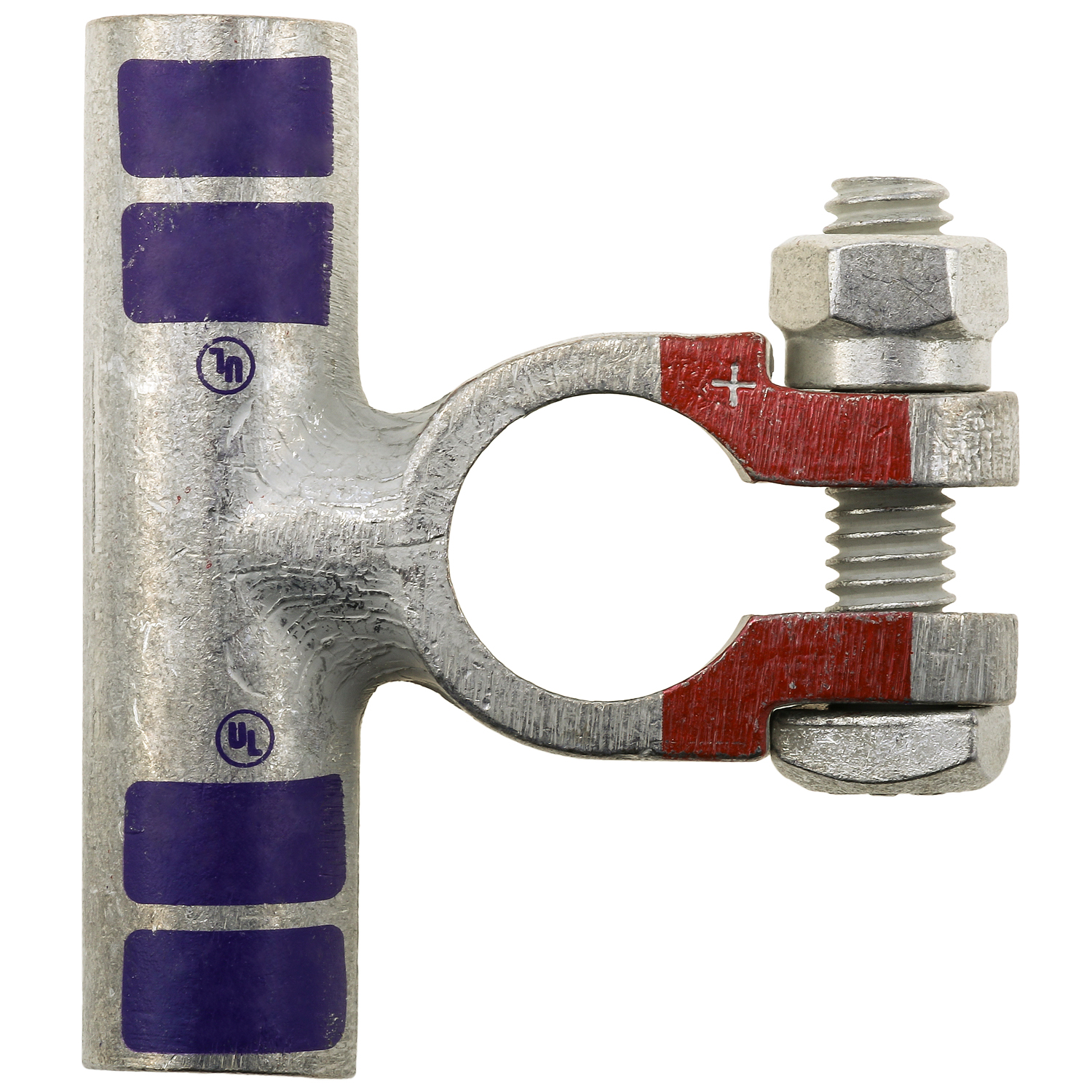

4330P
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | 25 times better than SAE conductivity standard, J1811, Made of cast copper alloy, tin plated for added conductivity & corrosion resistance, Permanent, indelible, readable gauge, and polarity stamped on clamp, Precise dimensions to fit battery posts for maximum contact Made in USA, Quick Connectors are listed by UL® (UL® STD 486A) & CUL , when applied with Quick Cable Quick Crimp tools 4255, 4255M, 4255R & 4255MR (standard and ratchet versions) |
| Application | Crimp, Solder |
| Includes | Fasteners |
| Gauge | 3/0 |
| Pack Type | Bag |
| Plating Material | Tin |
| Polarity | Positive |
| SAE | J163, J1811 |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | Yes |
| Works With | Top Posts |
| Brand | QUICK |
| Color | Silver |
| Color Code | Purple |
| Product Length | 2.50 in |
| Product Width | 0.65 in |
| Production Process | Cast |
| RoHS Compliant | Yes |
| Take Off | No |
| SKU | 4330-005P, 4330-050P, 4330P |
| Product Height | 2.20 in |
| Product Weight | 0.173 lb |
| Tristrip Statement | Strip .91" (23mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 23 mm (0.91 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
