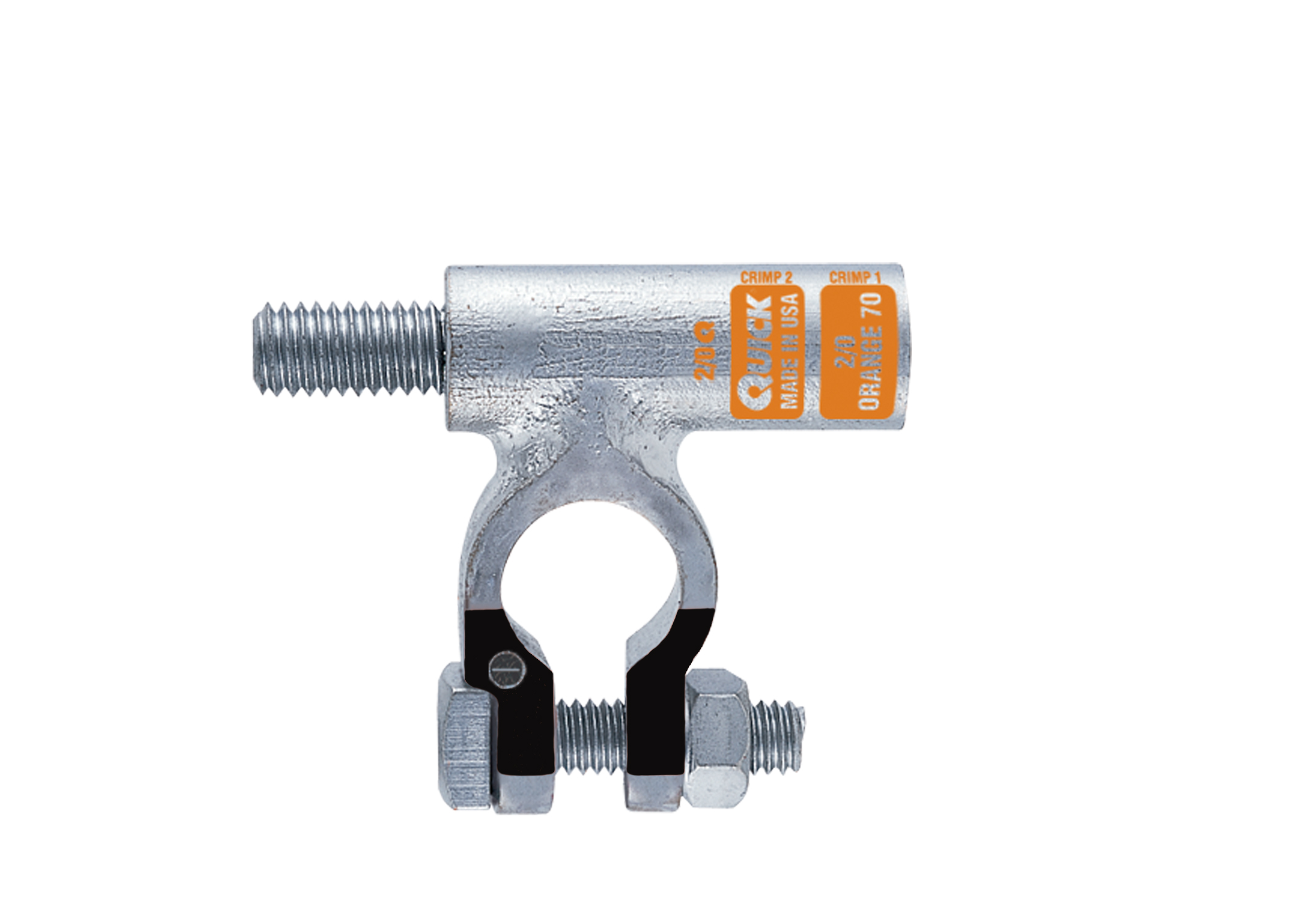

3420N
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | Exceeds SAE standards, J163 and J1811, For crimp or solder applications, Made in USA, Precise dimensions to fit battery posts for maximum contact, Precision Die Cast Copper alloy, Tin plated for added conductivity and corrosion resistance |
| Product Weight | 0.23 lb |
| Application | Hydraulic Pumps, Plug In Booster Cables, Winches |
| Includes | Fasteners |
| Gauge | 2/0 |
| Pack Type | Bag |
| Plating Material | Tin |
| Polarity | Negative |
| SAE | J163, J1811 |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp, Screw-on, Solder |
| UL / CSA | No |
| Works With | Top Post Batteries |
| Brand | QUICK |
| Color | Silver |
| Color Code | Orange |
| Orientation | Left |
| Product Length | 2.53 in |
| Product Width | 2.18 in |
| Production Process | Cast |
| RoHS Compliant | Yes |
| SKU | 3420-005N, 3420-050N, 3420N |
| Product Height | 0.64 in |
| Tristrip Statement | Strip .91" (23mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 23 mm (0.91 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
