Products • 230008
230008

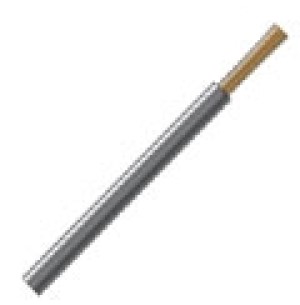

The GPT General Purpose Primary Wire is constructed from fine-stranded copper and coated with a flexible PVC insulation.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100 |
|---|---|
| Features | Copper stranded conductor for maximum conductivity, For use at 60V or less, Meets or exceeds SAE J1128, PVC insulation resists abrasion, fuel, oil, acid and salt |
| Application | General Purpose |
| Gauge | 22 |
| Conductor Material | Copper |
| Cable Nominal Outer Diameter | |
| Insulation Material | PVC |
| Insulation Thickness | 0.023 in |
| Pack Type | Roll |
| Prop 65 Item | DEHP, DINP |
| SAE | J1128 |
| Strand Count | 7 |
| Strand Gauge | 28 |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -40 to 80°C |
| Temperature Range (°F) | -40 to 176°F |
| UL / CSA | No |
| Voltage | 60 V |
| Works With | Automotive Connections |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.084 in |
| Color | Gray |
| Product Length | 3.50 in |
| Product Width | 3.50 in |
| RoHS Compliant | Yes |
| SKU | 230008, 230008-100 |
| Cable Length | 100 ft |
| Product Weight | 0.75 lb |
| Country of Origin | USA |
