214670

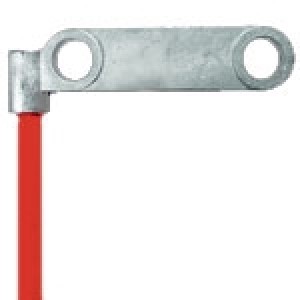

The Pre-Made Two Post-hole Offset Leadhead Cable is made of fine stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

1

Features

15/16" post hole (.937", 24 mm), Made with welding cable, hot tinned for maximum conductivity, flexibility and best for corrosion resistance, Silicone seal keeps moisture and acid out, extending cable life

Post Hole Spacing

3 3/4 in

Number of Termination Ends

1

Assembly Cable Length

72.00 in

SKU

214670, 214670-001

Works With

Intercell Connectors

RoHS Compliant

No

Product Length

72.00 in

Orientation

Offset

Color

Red

Brand

Not branded

Application

Material Handling

UL / CSA

No

Termination Method

Solder

Termination Material

Lead

Temperature Range (°F)

-58 to 221 °F

Temperature Range (°C)

-50 to 105 °C

Subject to Prop 65

Yes

Stud Hole Size

15/16 in

Strand Count

1615

SAE

No

RoHS Item

Lead

Prop 65 Item

DINP, Lead

Polarity

Positive

Pack Type

Bag

Body Material

Lead

Connection Type

Standard

Gauge

3/0

Product Weight

4.82 lb

Country of Origin

USA
