214102

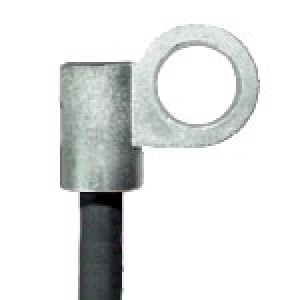

The Pre-Made Small Bore Offset Leadhead Cable is made of fine stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

214102 INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

1

Features

3/4" post hole (.75", 19 mm), Designed for SAE posts on deep-cycle batteries, Fine-stranded copper conductor, for maximum conductivity, flexibility and corrosion resistance, Silicone seal keeps moisture and acid out, extending cable life

Product Weight

3.80 lb

Gauge

2

Connection Type

Standard

Body Material

Lead

Pack Type

Bag

Polarity

Negative

Prop 65 Item

DINP, Lead

RoHS Item

Lead

SAE

No

Strand Count

644

Stud Hole Size

3/4 in

Subject to Prop 65

Yes

Temperature Range (°C)

-50 to 105 °C

Temperature Range (°F)

-58 to 221 °F

Termination Material

Lead

Termination Method

Solder

UL / CSA

No

Application

Material Handling

Brand

Not branded

Color

Black

Orientation

Offset

Product Length

120.00 in

RoHS Compliant

No

Works With

Intercell Connectors

SKU

214102, 214102-001

Assembly Cable Length

120.00 in

Number of Termination Ends

2

Country of Origin

USA
