141430
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 1, 5 |
|---|---|
| Features | Especially good in presence of destructive vibration or corrosive chemicals, Made in USA, Made of heavy wall 100% copper tube for added conductivity and to resist corrosion, More consistent quality than any other solder method, Solder & Flux preloaded in Barrel, Up to 2x stronger than crimp method, Wider pad for better electrical contact and thicker pad for greater strength and conductivity |
| Application | Field Repair, Flux, Solder |
| Gauge | 3/0 |
| Pack Type | Bag |
| Plating Material | Tin |
| Prop 65 Item | Lead |
| RoHS Item | Lead |
| SAE | No |
| Subject to Prop 65 | Yes |
| Termination Material | Solder |
| UL / CSA | No |
| Brand | Fusion |
| Color | Silver |
| Product Length | 2.50 in |
| Product Width | 0.74 in |

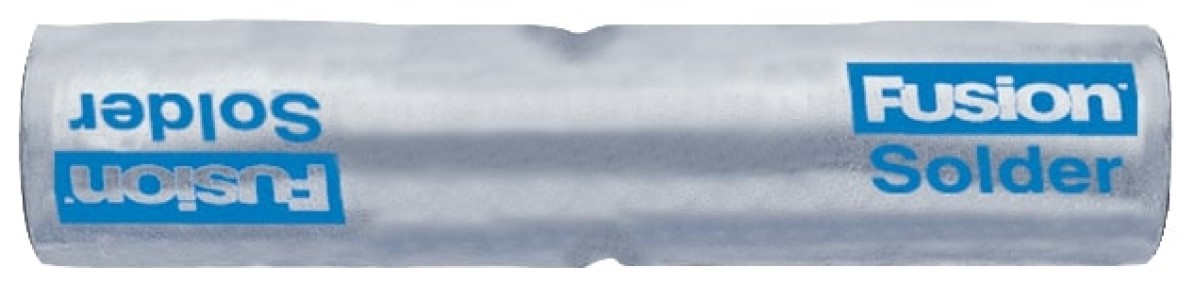

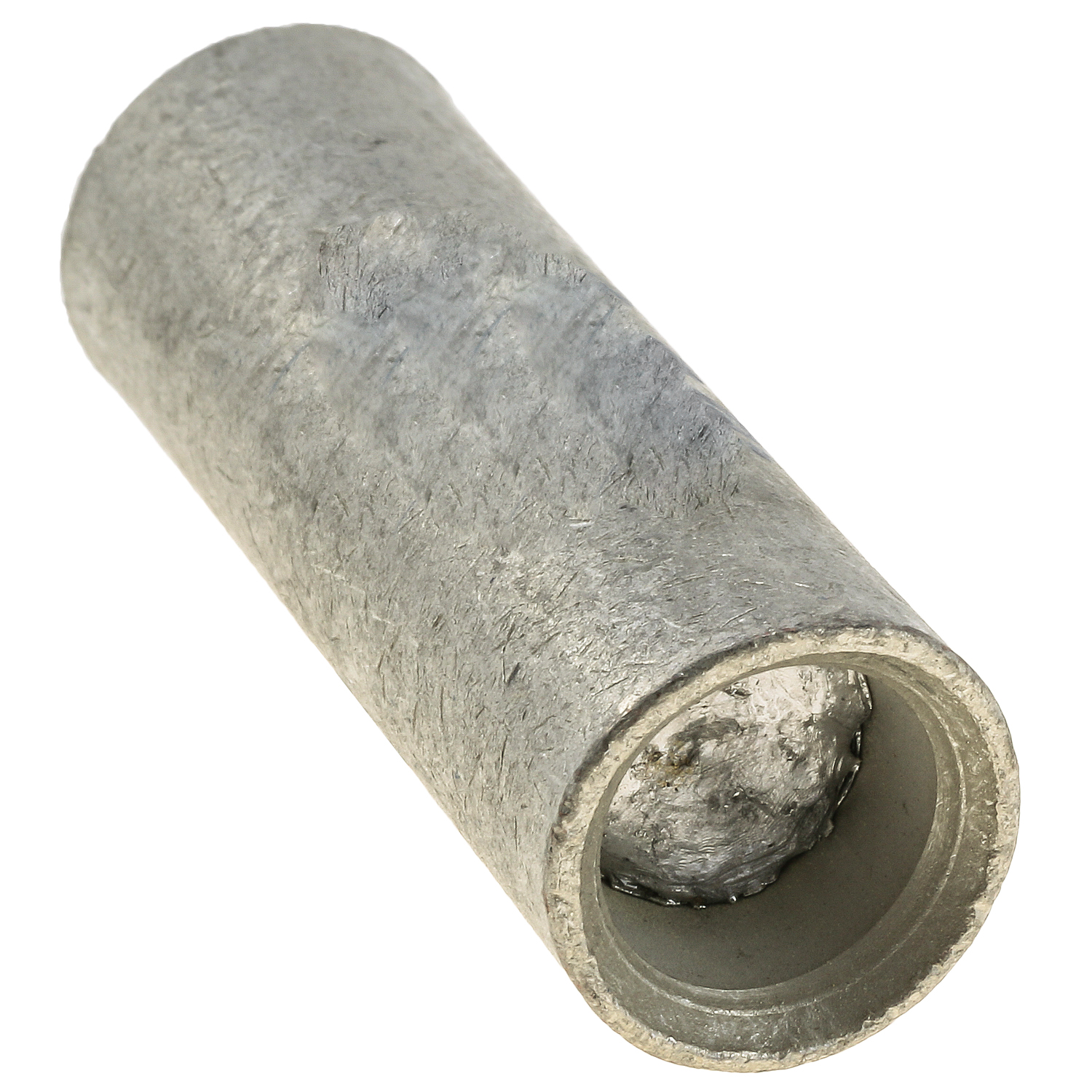

| Product Type | Heavy Wall Copper Butt Splice |
| RoHS Compliant | No |
| SKU | 141430, 141430-005, 141430-2001 |
| Product Height | 0.74 in |
| Product Weight | 0.26 lb |
| Works With | Copper Wire |
| Tristrip Statement | Strip .98" (25mm) minimum of insulation from end, fully insert in connectorat time of solder |
| Tristrip Statement / Spanish | Remueva por lo menos 25 mm (0.98 pulgadas) de aislamiento desde un extremo e inserte por completo en el conector en el momento de la soldadura. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
