122109

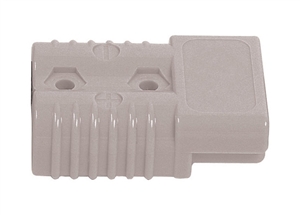

The SB® Connector Housing is color-coded for easy voltage and circuit identification.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

122109 INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

1, 10

Features

Gray housings will only plug into gray housings, not red or blue housings, Housings are color-keyed, SB® Connector Housings, The color key feature makes it possible for you to differentiate voltages of your electrical circuits

Product Height

0.81 in

SKU

122109, 122109-001, 122109-010

RoHS Compliant

Yes

Product Type

Housing

Product Width

1.75 in

Product Length

2.50 in

Color

Gray

Brand

SB

Works With

SB

UL / CSA

No

Termination Material

Stainless Steel

Temperature Range (°F)

-4 to 221°F

Temperature Range (°C)

-20 to 105°C

Subject to Prop 65

No

SAE

No

Pack Type

Bag

Maximum Voltage

600 V

Gauge

2, 4, 6

Housing Material

PBT

Application

Industrial

Amps

120 A

Product Weight

0.04 lb

Country of Origin

USA
