120220

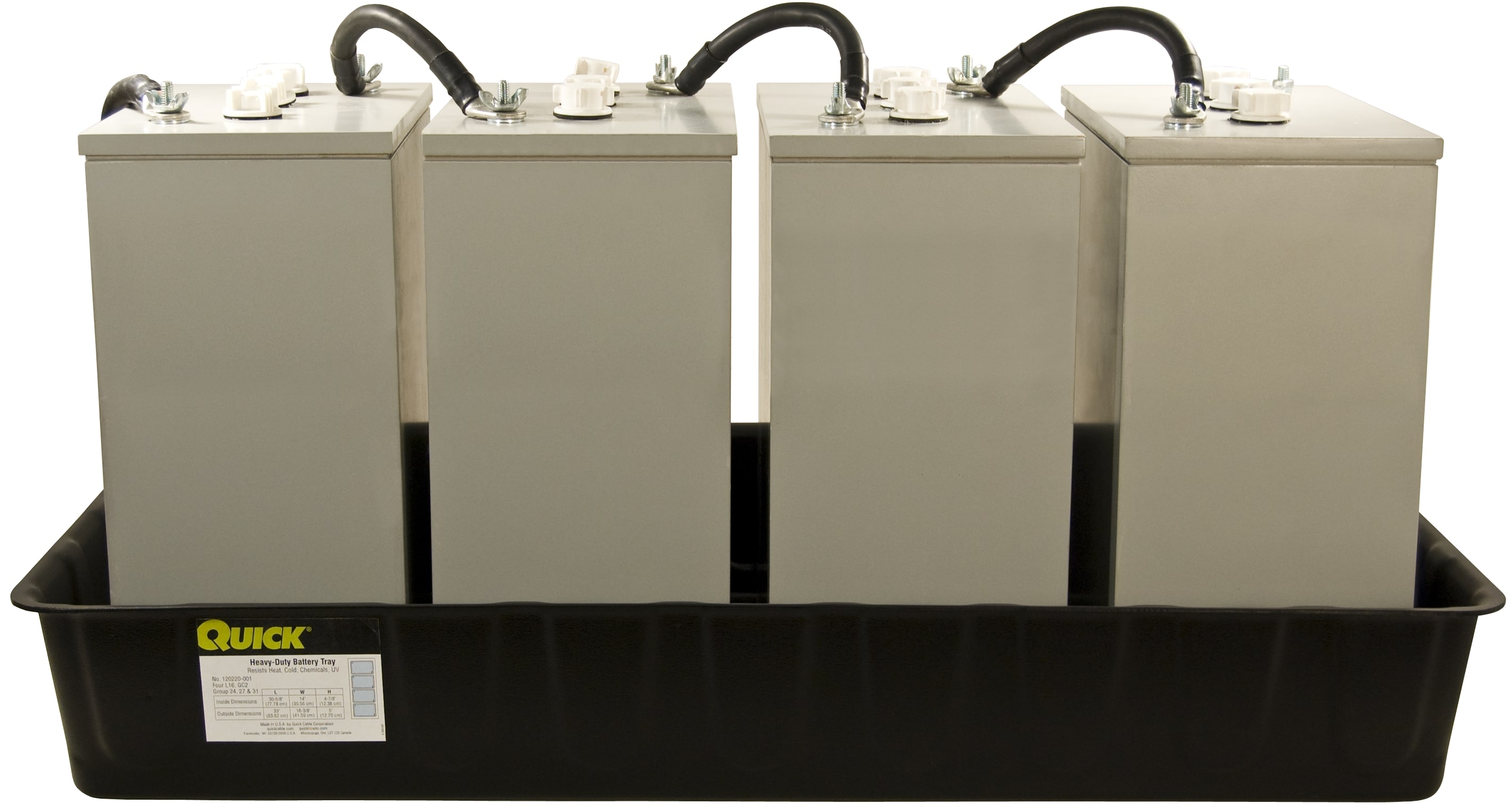

QuickCable Battery Trays are made with heavy gauge material. We use thicker, stronger material to produce a rugged, durable product. Our trays are made of HDPE which is impervious to acid, gasoline, oil, and solvents. They are also UV protected, flame retardant, and are heat stable to +200° F (90° C) and come in a variety of sizes.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

120220 INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

1

Features

Heat stable and cold temperature impact resistant -30°F to +170° F (-34° to +90° C), Heavy-gauge material, compare our trays to any others; we use thicker, stronger material to produce a rugged, durable product, Multiple battery trays can hold 2, 3, 4 or more batteries, depending on the width and orientation of the batteries, Quick™ Battery Trays are made to work in standalone applications, Single battery trays can be used to create unique battery layouts (side-by-side, end-to-end, spaced close together or far apart, etc.), and they can be easily moved or removed depending on your maint, Trays are made of HDPE which is impervious to acid, gasoline, oil and solvents, Trays can act as an acid containment system, either as a primary containment system or redundant to a floor-installed containment system, Trays electrically isolate batteries from battery racks, as required by the National Electrical Code (NEC), Trays will accommodate other batteries with similar footprints; for example Group 31 is similar to L16

Inner Height

5.00 in

Inner Length

31.50 in

Inner Width

14.87 in

Material

Polyethylene

Number of Batteries

4

Pack Type

Box

RoHS

Yes

SAE

No

Subject to Prop 65

No

Temperature Range (°C)

-34 to 93°C

Temperature Range (°F)

-30 to 200°F

UL - CSA

No

Country of Origin

USA
