7851

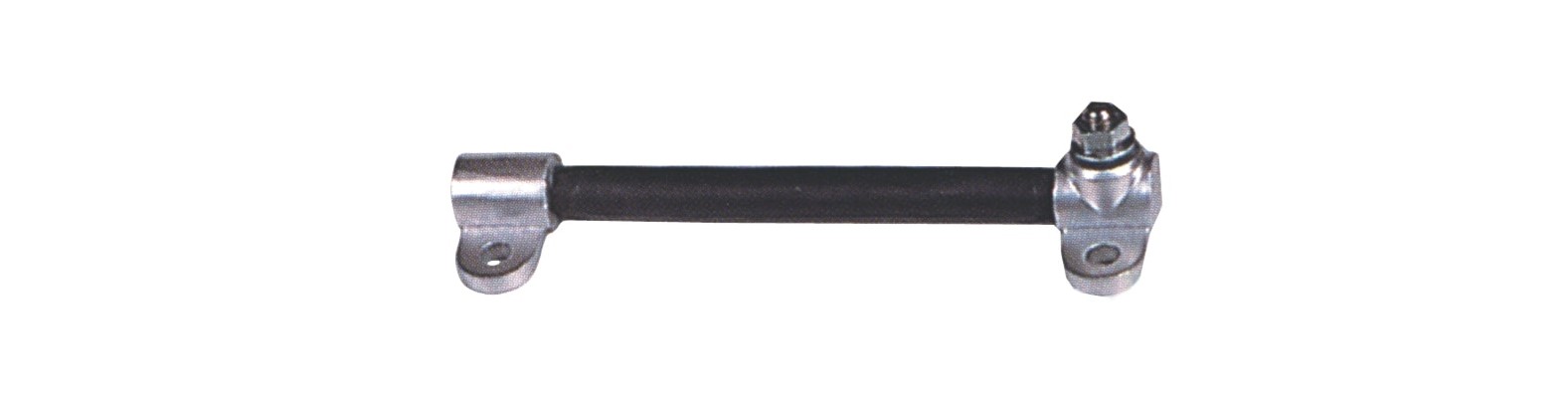

The Stud-to-Power Take-off Stud is made of fine stranded copper for maximum conductivity and flexibility. It is the most efficient way to connect two paralleled batteries for delivery of maximum starting power at the same voltage.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

7851 INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

1, 25

Features

2/0 gauge PVC-Insulated copper cable, Exceeds SAE specifications, For Parallel Connection of 3 Batteries, Ideal for Group 27, Group 31 batteries and similar batteries, Most efficient way to connect three paralleled batteries for delivery of maximum starting power at same voltage, Temperature range: 221°F (105°C) to -58°F (-50°C)

Product Weight

0.95 lb

Post Hole Spacing

6.82 in

Assembly Cable Length

6 13/16 in

SKU

7851, 7851-001, 7851-025

Works With

Motive Batteries

RoHS Compliant

No

Product Type

Battery Jumper

Product Length

6.81 in

Color

Black

Cable Nominal Outer Diameter

0.60 in

Brand

Not branded

Application

Automotive, Industrial

UL / CSA

No

Thimble

No

Termination Material

Lead

Temperature Range (°F)

-58 to 221°F

Temperature Range (°C)

-50 to 105°C

Subject to Prop 65

Yes

SAE

No

RoHS Item

Lead

Prop 65 Item

DEHP, DINP, Lead

Polarity

Negative

Pack Type

Bag, Box

Number of Leads

2

Number of Batteries

2

Insulation Thickness

0.06 in

Insulation Material

PVC

Connection Type

Stud to Post

Gauge

2/0

Stud Post Size

.620 in

Country of Origin

USA
