7754
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 1, 25 |
|---|---|
| Features | 2/0 gauge PVC-Insulated copper cable, Exceeds SAE specifications, For Parallel Connection of 2 or 3 Batteries, Ideal for Group 27, Group 31 batteries and similar batteries, Most efficient way to connect two or three paralleled batteries for delivery of maximum starting power at same voltage, Temperature range: 221°F (105°C) to -58°F (-50°C) |
| Product Weight | 1.20 lb |
| Post Hole Spacing | 7.72 in |
| Assembly Cable Length | 7 3/8 in |
| SKU | 7754, 7754-001, 7754-025 |
| Works With | Motive Batteries |
| RoHS Compliant | No |

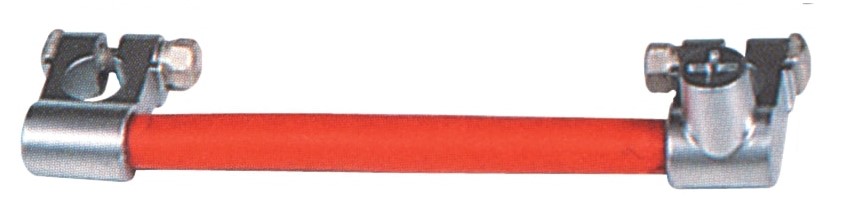

| Product Type | Battery Jumper |
| Product Length | 7.37 in |
| Color | Red |
| Cable Nominal Outer Diameter | 0.60 in |
| Brand | Not branded |
| Application | Automotive, Industrial |
| Stud Hole Size | .745 in |
| UL / CSA | No |
| Thimble | No |
| Termination Material | Lead |
| Pack Type | Bag, Box |
| Gauge | 2/0 |
| Connection Type | Clamp to Clamp |
| Insulation Material | PVC |
| Insulation Thickness | 0.06 in |
| Number of Batteries | 2 |
| Number of Leads | 2 |
| Polarity | Positive |
| Temperature Range (°F) | -58 to 221°F |
| Prop 65 Item | DEHP, DINP, Lead |
| RoHS Item | Lead |
| SAE | No |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -50 to 105°C |
| Stud Post Size | .685 in |
| Country of Origin | USA |
