730237

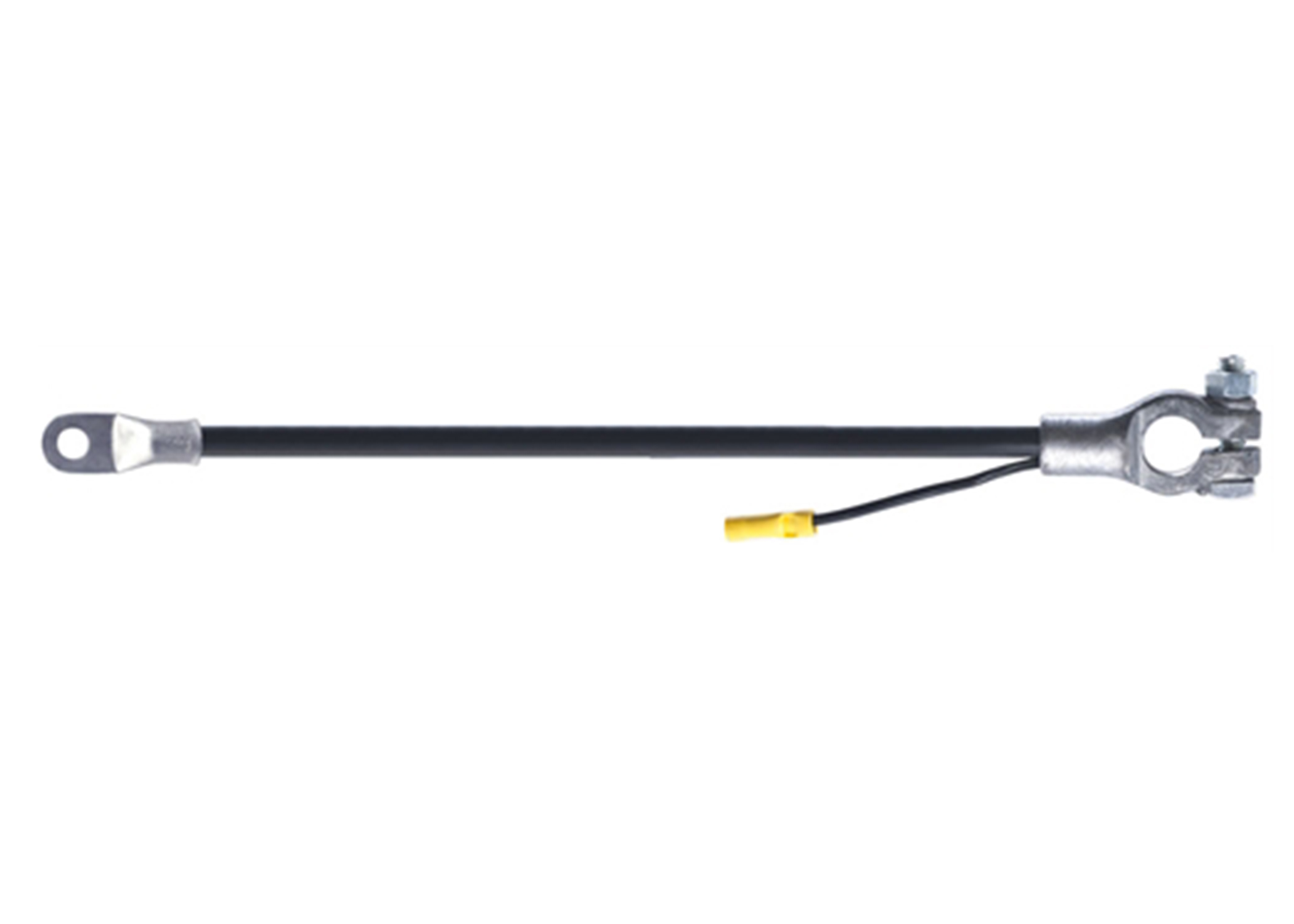

The Universal Top Post-to-Lug Cable Assembly with Auxiliary Lead Wire is made of fine stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

1

Features

4 GA, black, top post, Has 12 GA auxiliary lead with butt connector

Works With

Side Posts, Top Post

Termination Material Plating

Tin

RoHS Compliant

Yes

Product Length

37.00 in

Color

Black

Cable Nominal Outer Diameter

0.28 in

Brand

Not branded

UL / CSA

No

Thimble

No

Termination Material Plating

Termination Material

Copper, Lead

Temperature Range (°F)

-58 to 221°F

Temperature Range (°C)

-50 to 105°C

Subject to Prop 65

Yes

Stud Hole Size

3/8 in

Strand Count

70

Prop 65 Item

DEHP, DINP, Lead

Polarity

Universal

Pack Type

Bag

Insulation Thickness

0.06 in

Insulation Material

PVC

Cable Nominal Outer Diameter

Connection Type

Clamp to Lug to Butt Connector

Gauge

4

Application

Light Duty Cars, RVs, Trucks, Vans

SKU

730237, 730237-001

Country of Origin

USA
