7142

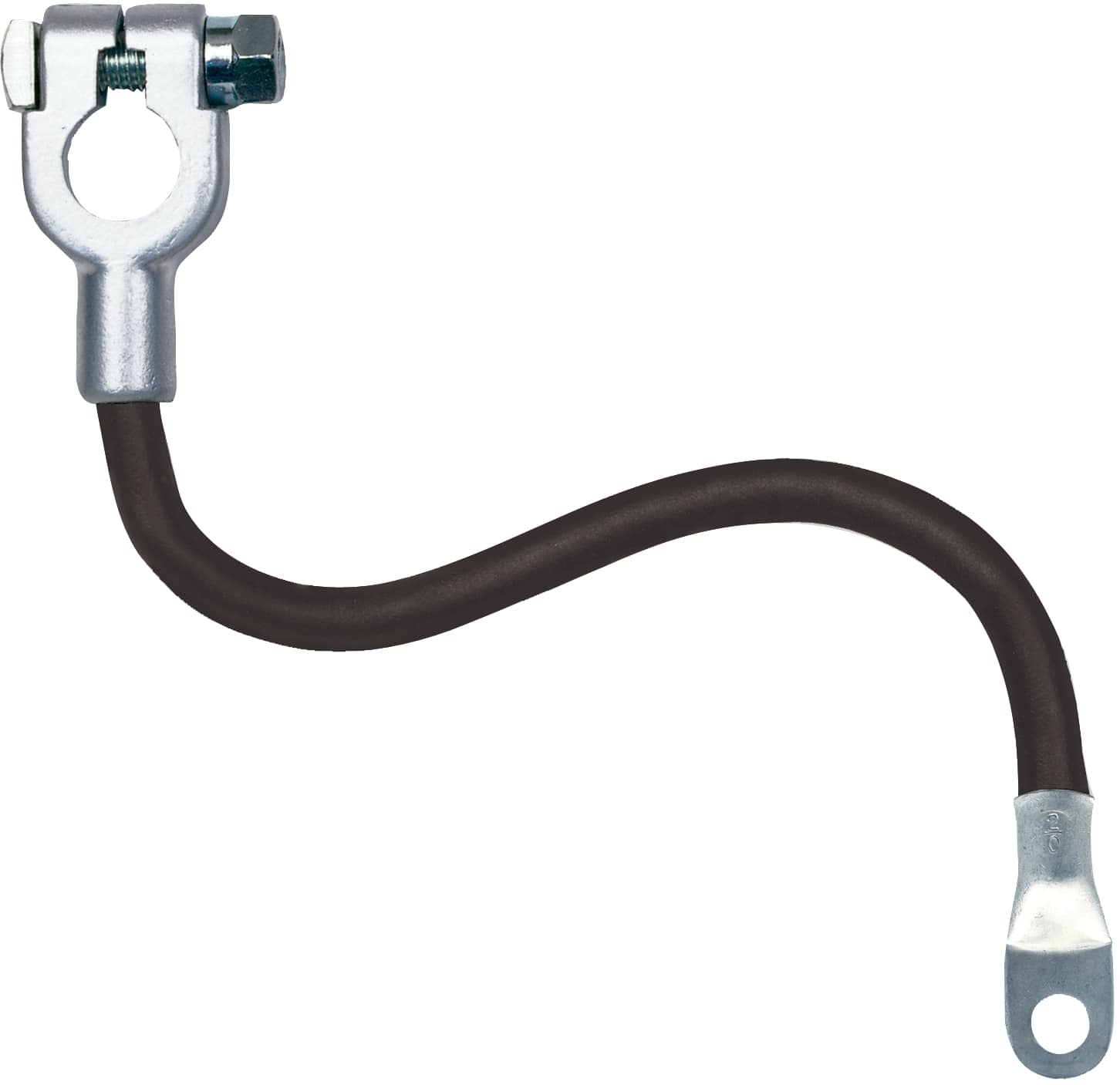

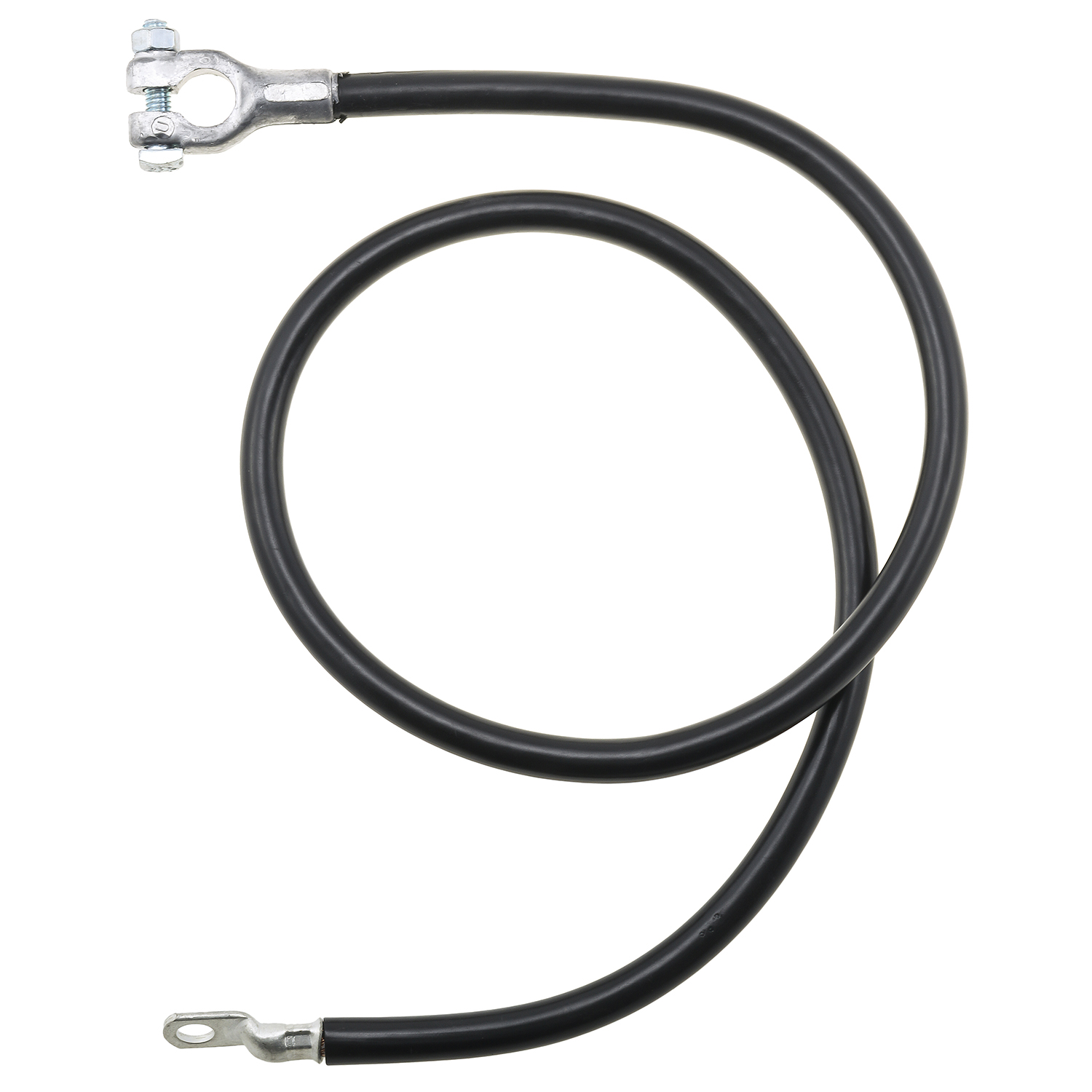

The Top Post-to-Lug Cable Assembly (Black) is made of fine stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

7142& INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

1, 25

Features

All have a standard 3/8" stud hole, Antimonial lead connectors resist corrosion, die cast process seals copper wire from acid fumes and corrosive salts, Copper conductor for maximum conductivity, Meets or exceeds SAE specifications, ideal for OEM replacement, Standard Retail Cables, Temperature range: 221°F (105°C) to -58°F (-50°C), Tinning of copper wire before casting ensures durable bond between wire and connector

Assembly Cable Length

42.00 in

SKU

7142, 7142-001, 7142T-001, 7142T-025, 7142T-2001

Works With

Side Posts, Top Post

Termination Material Plating

Tin

RoHS Compliant

No

Product Length

42.00 in

Color

Black

Cable Nominal Outer Diameter

0.36 in

Brand

Not branded

UL / CSA

No

Thimble

No, Yes

Termination Material Plating

Termination Material

Copper, Lead, Steel

Temperature Range (°F)

-58 to 221°F

Temperature Range (°C)

-50 to 105°C

Subject to Prop 65

Yes

Stud Hole Size

3/8 in

Strand Count

133

SAE

Yes

RoHS Item

Lead

Prop 65 Item

DEHP, DINP, Lead

Polarity

Negative

Pack Type

Bag, Box

Insulation Thickness

0.06 in

Insulation Material

PVC

Cable Nominal Outer Diameter

Connection Type

Clamp to Lug, Clamp to Thimble

Gauge

1

Application

Light Duty Cars, RVs, Trucks, Vans

Product Weight

1.40 lb

Country of Origin

USA
