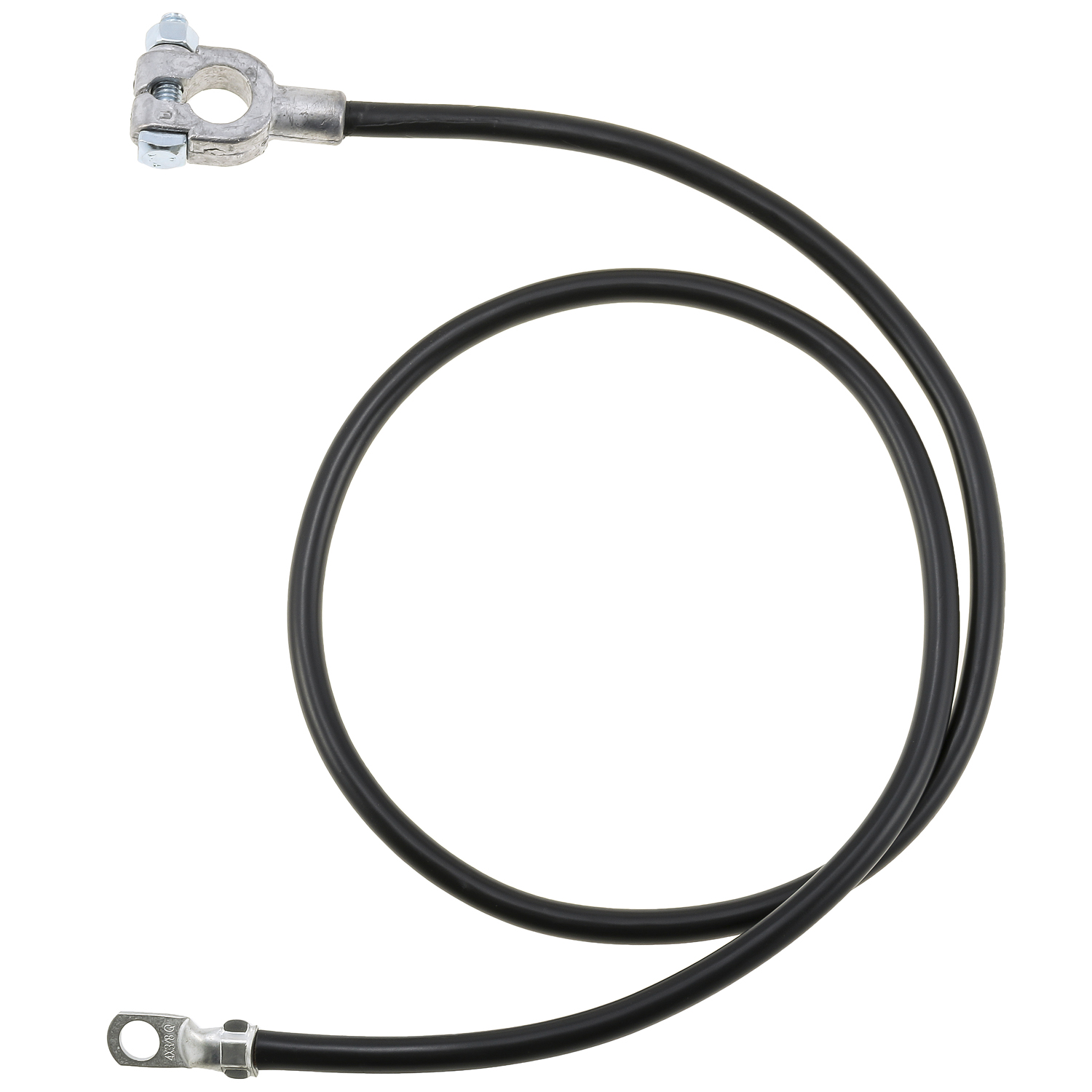

7042
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 1, 25 |
|---|---|
| Features | All have a standard 3/8" stud hole, Antimonial lead connectors resist corrosion, die cast process seals copper wire from acid fumes and corrosive salts, Copper conductor for maximum conductivity, Meets or exceeds SAE specifications, ideal for OEM replacement, Standard Retail Cables, Temperature range: 221°F (105°C) to -58°F (-50°C), Tinning of copper wire before casting ensures durable bond between wire and connector |
| Assembly Cable Length | 42.00 in |
| SKU | 7042, 7042-001, 7042-025, 7042T-001 |
| Works With | Side Posts, Top Post |
| Termination Material Plating | Tin |
| RoHS Compliant | No |
| Product Length | 42.00 in |
| Color | Black |
| Cable Nominal Outer Diameter | 0.28 in |
| Brand | Not branded |
| UL / CSA | No |
| Thimble | No, Yes |
| Termination Material Plating | |
| Termination Material | Copper, Lead, Steel |
| Temperature Range (°F) | -58 to 221°F |
| Temperature Range (°C) | -50 to 105°C |
| Subject to Prop 65 | Yes |
| Stud Hole Size | 3/8 in |
| Strand Count | 70 |
| SAE | Yes |
| RoHS Item | Lead |
| Prop 65 Item | DEHP, DINP, Lead |
| Polarity | Negative |
| Pack Type | Bag, Box |
| Insulation Thickness | 0.06 in |
| Insulation Material | PVC |
| Cable Nominal Outer Diameter | |
| Connection Type | Clamp to Lug, Clamp to Thimble |
| Gauge | 4 |
| Application | Light Duty Cars, RVs, Trucks, Vans |
| Product Weight | 0.71 lb |
| Country of Origin | USA |
