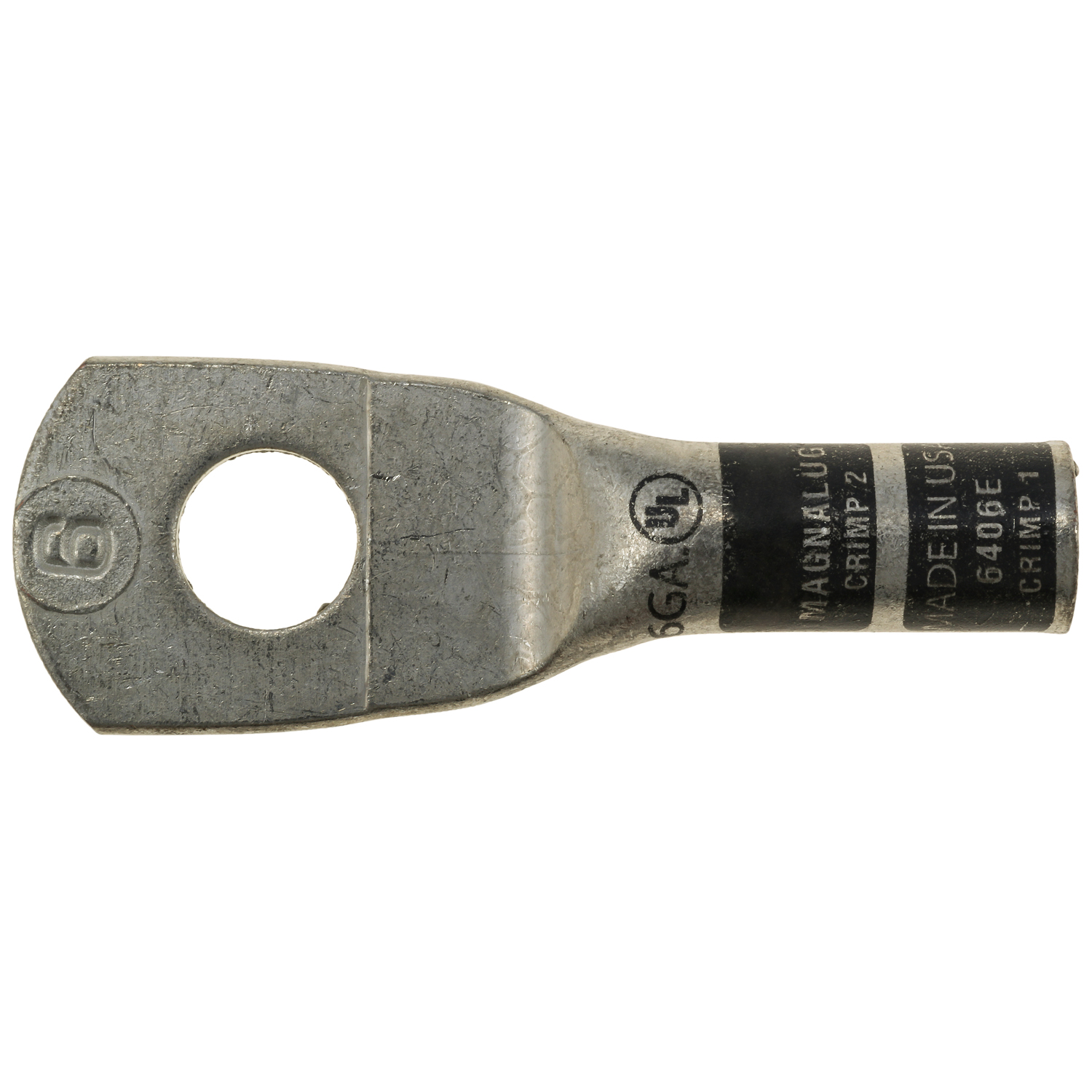

6406E
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | Exceeds SAE conductivity standards J163 and J1811, Excellent for commercial and industrial applications, Heavy wall copper lugs are 80% thicker than standard lugs, Heavy Wall Copper Tube Lugs, Locking, Anti Rotating Lug, Made in USA, Made of 100% copper, tin-plated for added conductivity and to resist corrosion, Wider and thicker pads for greater strength and conductivity |
| Application | General wiring as well as starter or ground connections |
| Gauge | 6 |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | J163, J1811 |
| Stud Hole Size | 5/16 in |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | Yes |
| Works With | Side Posts |
| Brand | MagnaLug |
| Color | Silver |
| Product Length | 1.97 in |
| Product Width | 0.55 in |
| Product Type | Straight lug |
| Production Process | Formed |
| RoHS Compliant | Yes |
| SKU | 6406-005E, 6406-050E, 6406E |
| Product Height | 0.35 in |
| Product Weight | 0.03 lb |
| Tristrip Statement | Strip .75" (19mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 19 mm (0.75 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
