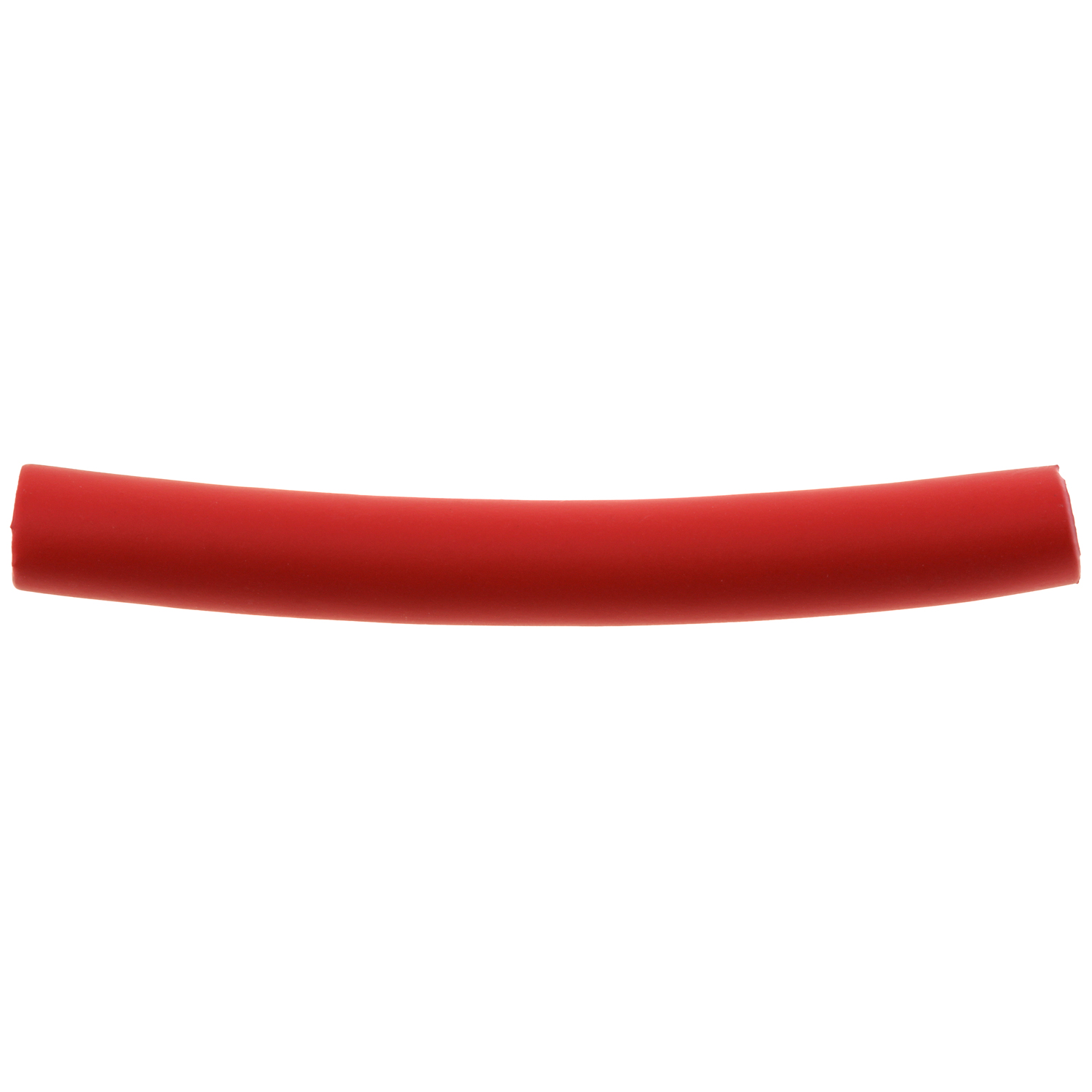

5657R
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
Parts per Unit | 1, 10, 5, 50 |
---|---|
Features | 3:1 Shrink Ratio, Clear tube permits visual inspection for easy maintenance and trouble shooting, Remains flexible after shrink |
Product Weight | 0.03 lb |
Shrunk Diameter | 3/64 in |
Expanded Diameter | 1/8 in |
SKU | 5657-001R, 5657-005R, 5657-010R, 5657-050R, 5657-051R, 5657-2010R, 5657R |
RoHS Compliant | Yes |
Product Length | 1.50 in, 48.00 in, 6.00 in |
Color | Red |
Brand | FlexTube |
Adhesive | Yes |
Waterproof | Yes |
UL / CSA | No |
Tensile Strength | 10.4 PSI |
Temperature Range (°F) | -67 to 230°F |
Temperature Range (°C) | -55 to 110°C |
Subject to Prop 65 | No |
Shrink Ratio | 3:1 |
SAE | No |
Post Shrink Wall Thickness | 1/16 in |
Pack Type | Bag |
Nominal Wall Thickness | 0.0354 in |
Flame Retardant | Yes |
Body Material | Polyolefin |
Gauge | 18, 20, 22, 24 |
Application | Battery Connectors |
Country of Origin | China |
