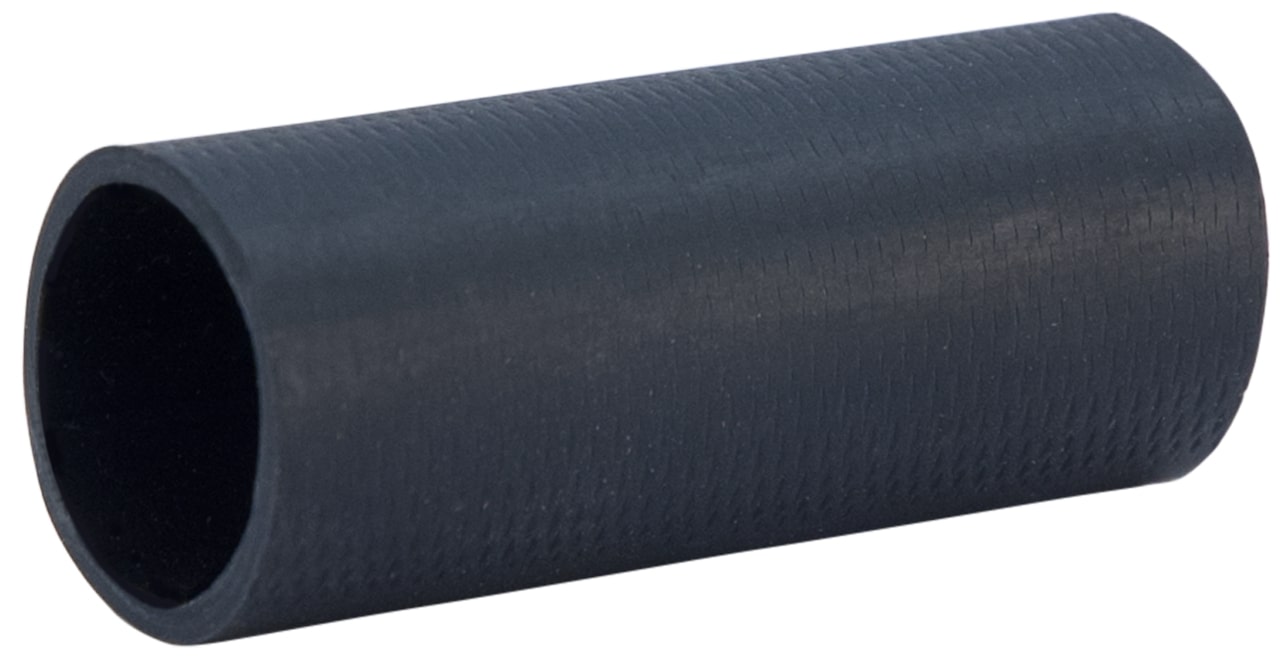

5651B
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 1, 10, 5, 50 |
|---|---|
| Features | 3:1 Shrink Ratio, Class 1 and 2 specifications, Conforms to DOD Mil-DTL-23053/15A, Meets UL – 486D specifications, Premium quality for heavy-duty applications |
| Gauge | 2, 4, 6 |
| Body Material | Polyolefin |
| Flame Retardant | No |
| Nominal Wall Thickness | 0.108 in |
| Pack Type | Bag |
| Post Shrink Wall Thickness | 1/8 in |
| SAE | No |
| Shrink Ratio | 3:1 |
| Subject to Prop 65 | No |
| Temperature Range (°C) | -55 to 110°C |
| Temperature Range (°F) | -67 to 230°F |
| Tensile Strength | 10.4 PSI |
| UL / CSA | No |
| Waterproof | Yes |
| Adhesive | Yes |
| Brand | MagnaTube |
| Color | Black |
| Product Length | 1.50 in, 48.00 in, 6.00 in |
| RoHS Compliant | Yes |
| SKU | 5651-001B, 5651-005B, 5651-010B, 5651-050B, 5651-051B, 5651B |
| Expanded Diameter | 1/2 in |
| Shrunk Diameter | 3/16 in |
| Application | Battery Connectors |
| Country of Origin | China |
