5616

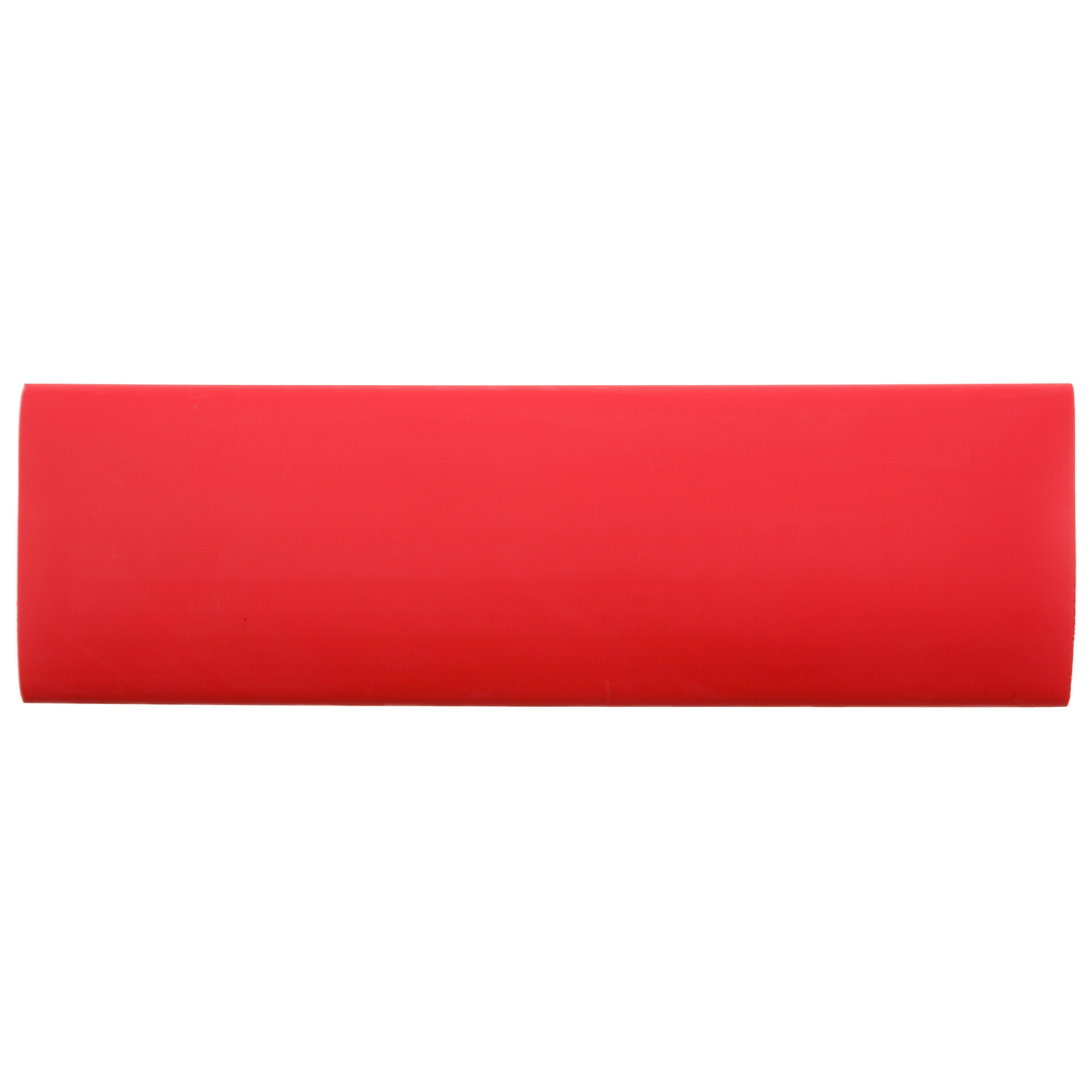

Our MagnaTube™ is designed for heavy duty applications requiring protection from abrasion.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

5616 INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

1, 10, 5, 50

Features

3:1 Shrink Ratio, Class 1 and 2 specifications, Conforms to DOD Mil-DTL-23053/15A, Meets UL – 486D specifications, Premium quality for heavy-duty applications

Application

Battery Connectors

Gauge

1/0, 2/0, 250 MCM, 3/0, 4/0

Body Material

Polyolefin

Flame Retardant

Yes

Nominal Wall Thickness

0.118 in

Pack Type

Bag

Post Shrink Wall Thickness

1/8 in

SAE

No

Shrink Ratio

3:1

Subject to Prop 65

No

Temperature Range (°C)

-55 to 110°C

Temperature Range (°F)

-67 to 230°F

Tensile Strength

11.5 PSI

UL / CSA

No

Adhesive

Yes

Waterproof

Yes

Brand

MagnaTube

Color

Red

Product Length

1.50 in, 48.00 in, 6.00 in

RoHS Compliant

Yes

SKU

5616, 5616-001R, 5616-005R, 5616-010R, 5616-050R, 5616-051R

Expanded Diameter

1 1/8 in

Shrunk Diameter

3/8 in

Country of Origin

China
