5505
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 10, 2, 50 |
|---|---|

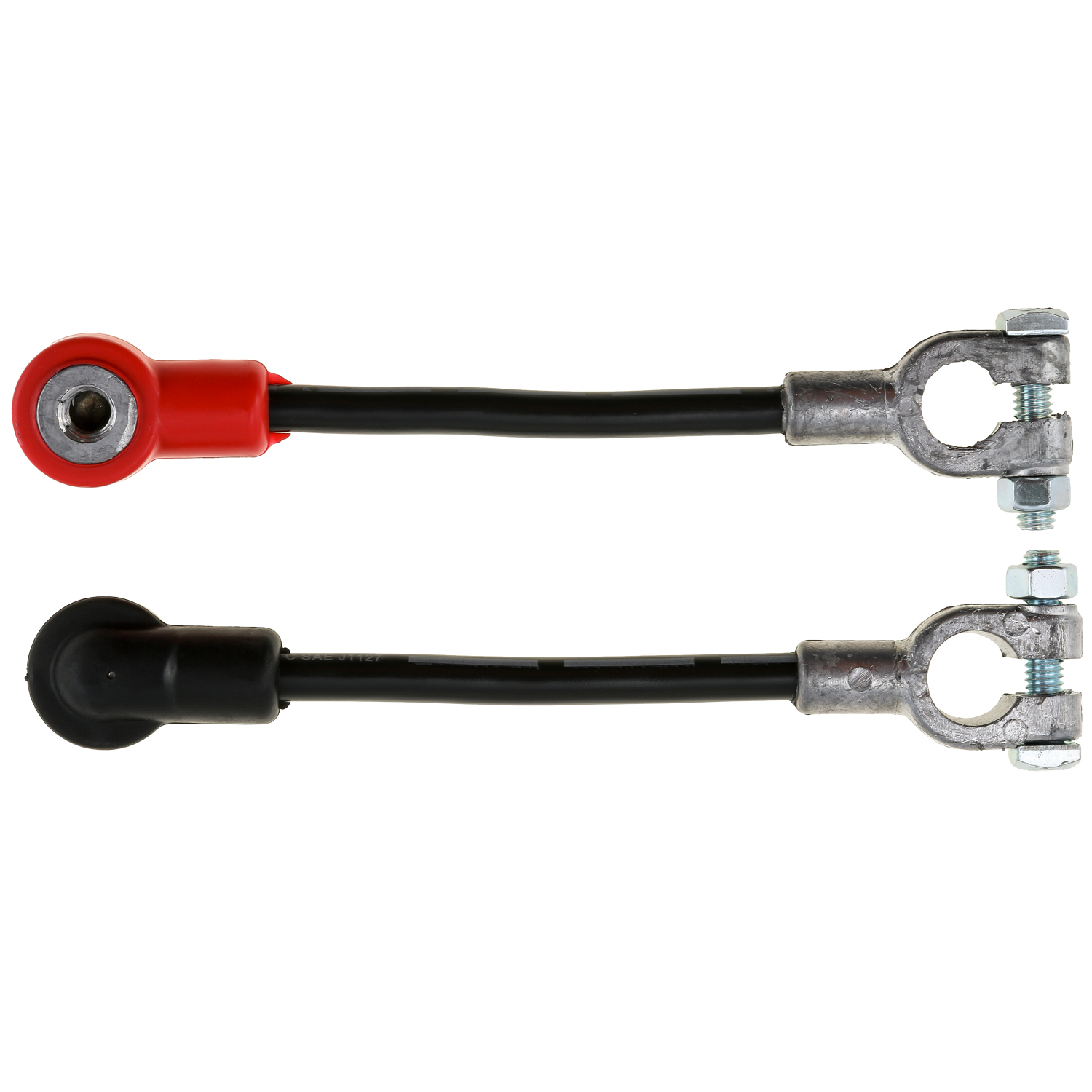

| Features | 4 GA cable is 7”, Converts top post to side terminal, Polarity specific, sold in pairs |
| Application | Light Duty Cars, RVs, Trucks, Vans |
| Gauge | 4 |
| Connection Type | Clamp to Cap Nut |
| Cable Nominal Outer Diameter | |
| Insulation Material | PVC |
| Insulation Thickness | 0.06 in |
| Pack Type | Bag, Box |
| Polarity | Negative, Positive |
| Prop 65 Item | DEHP, DINP, Lead |
| Strand Count | 70 |
| Subject to Prop 65 | Yes |
| Termination Material | Lead |
| Termination Material Plating | |
| Thimble | No |
| UL / CSA | No |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.28 in |
| Color | Black, Red |
| Product Length | 6.75 in |
| RoHS Compliant | Yes |
| Temperature Range (°C) | -50 to 105°C |
| Temperature Range (°F) | -58 to 221°F |
| Termination Material Plating | Tin |
| Works With | Side Posts, Top Post |
| SKU | 5505, 5505-010, 5505-050, 5505-2002 |
| Assembly Cable Length | 6.75 in |
| Product Weight | 0.98 lb |
| Tristrip Statement | Strip .91" (23 mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Strip 0.91 " ( 23 mm ) como mínimo de aislamiento del extremo , totalmente insertar en el conector y engarzado en dos lugares. Bande de 0,91 " ( 23 mm ) |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
