4904F

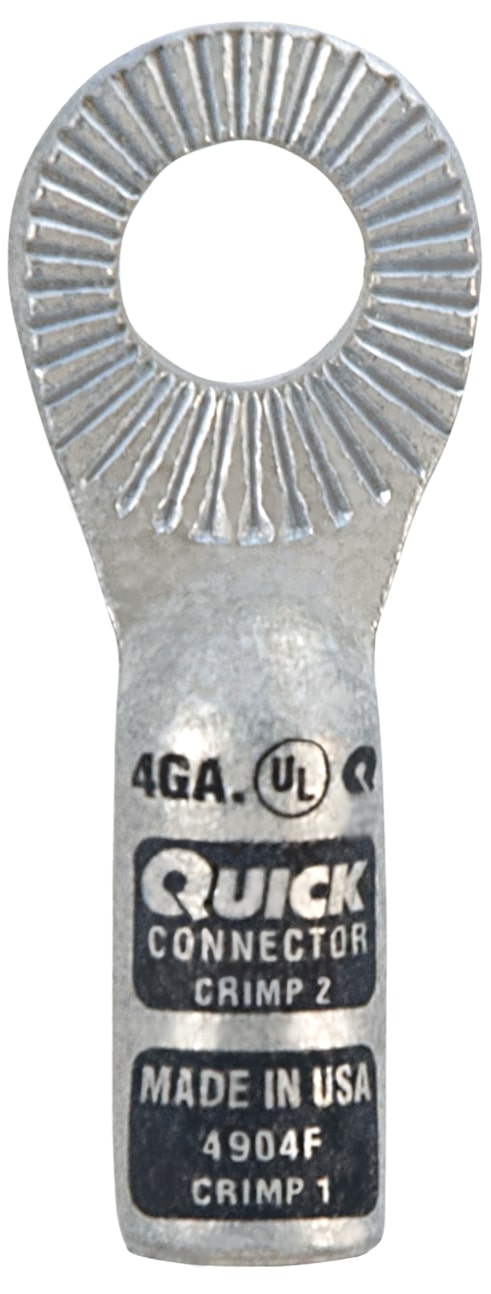

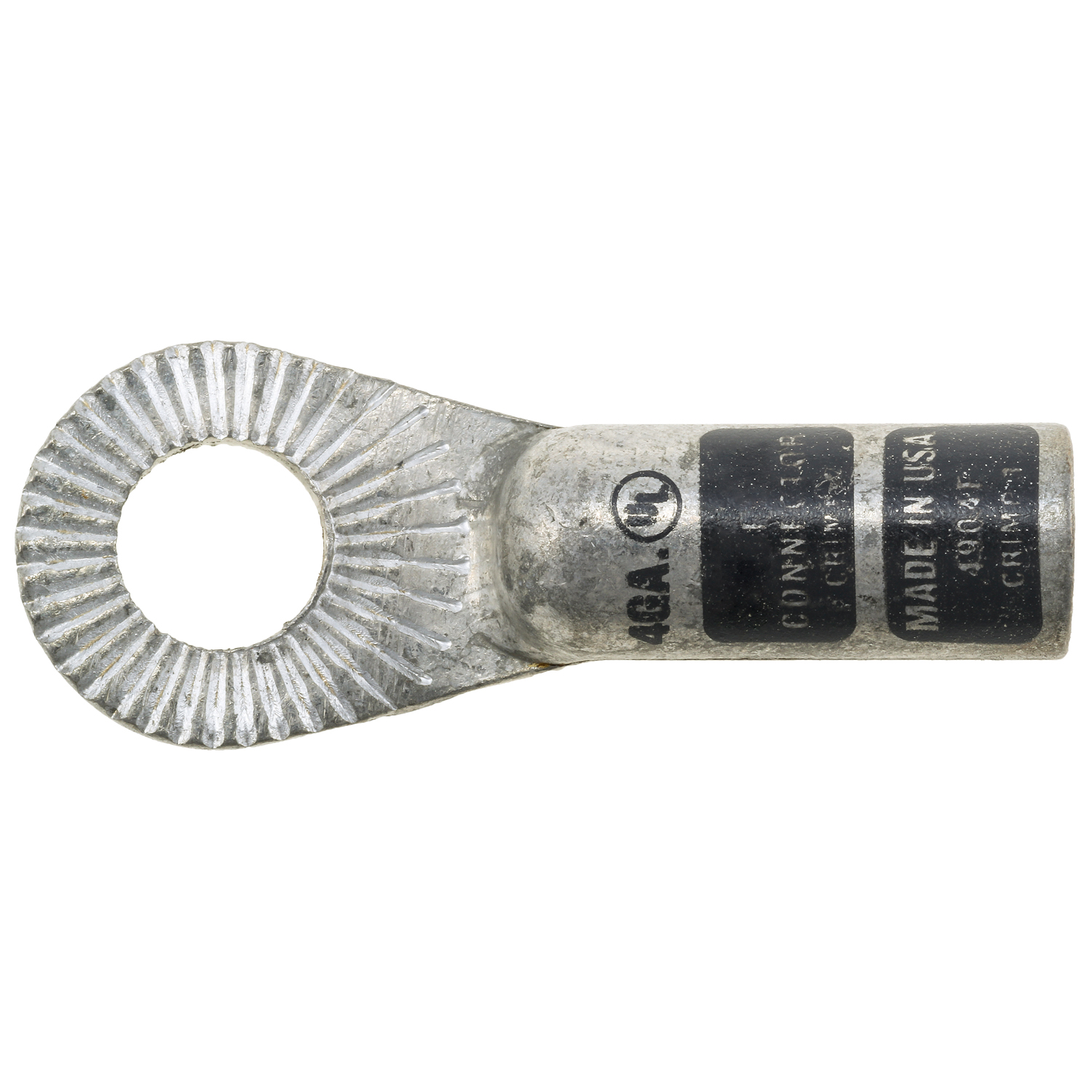

Our Quick® Stud Terminal Locking Battery Connector is stackable, with 24-position anti-rotation teeth that bite into the lead for positive hold. It allows for connectors of different cable gauges to be mixed for maximum application and layout flexibility.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

4904F INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

5, 50

Features

Copper alloy, tin plated for added conductivity and corrosion resistance, Exceeds SAE standards, J163 and J1811, For crimp or solder applications, For preassembled cable options – see QuickLinks, Made in USA, Precise dimensions to fit battery posts for maximum contact, Quick Connectors are listed by UL® (UL® STD 486A) & CUL , when applied with Quick Cable Quick Crimp tools

RoHS Compliant

Yes

Production Process

Cast

Product Type

Straight lug

Product Width

0.75 in

Product Length

2.00 in

Color

Silver

Brand

QUICK

Works With

Side Posts

UL / CSA

Yes

Termination Method

Crimp

Termination Material

Copper

Subject to Prop 65

No

Stud Hole Size

3/8 in

SAE

J163, J1811

Plating Material

Tin

Pack Type

Bag

Gauge

4

Application

Heavy Duty

SKU

4904-005F, 4904-050F, 4904F

Country of Origin

USA
