4530F

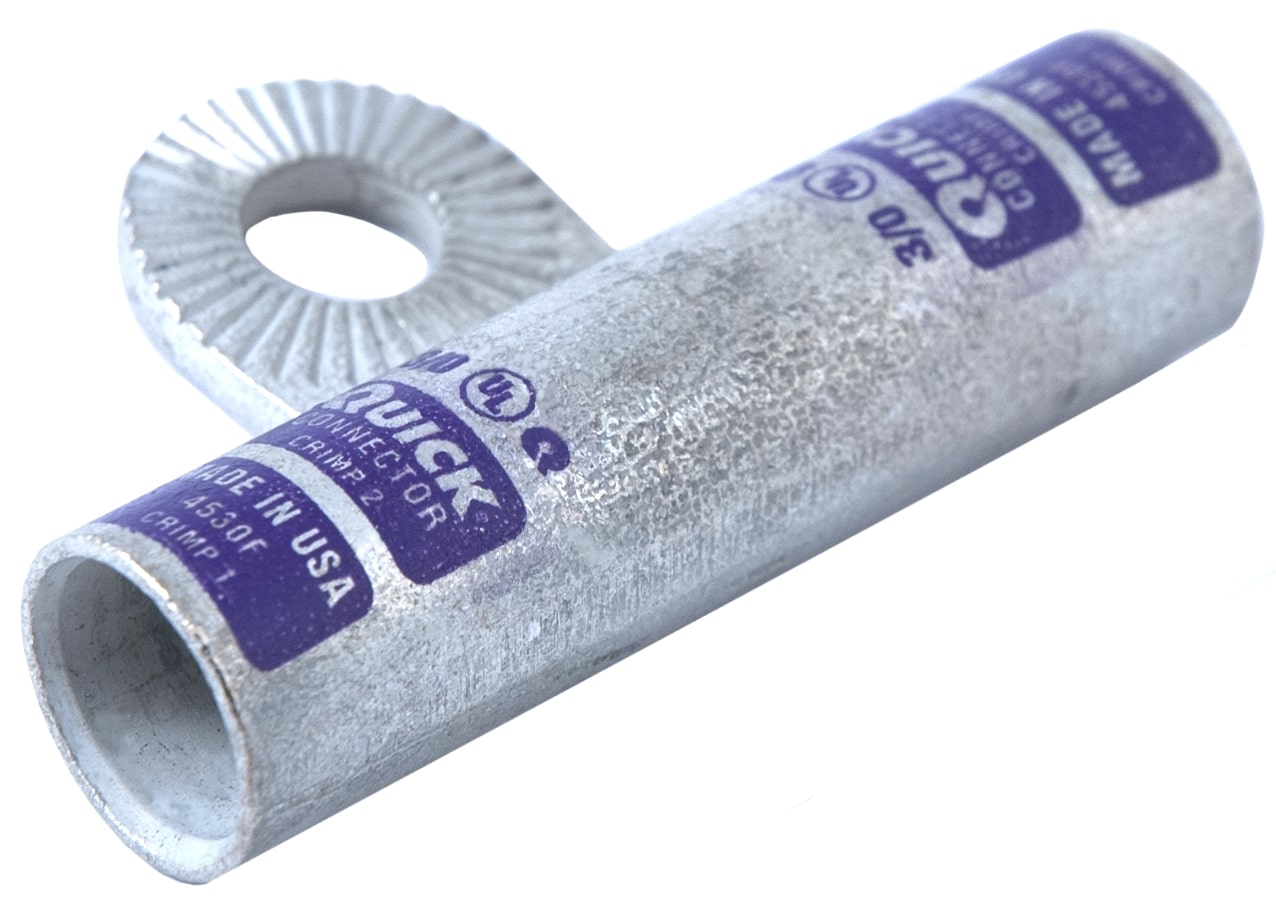

Our Quick® Stud Flag Locking Battery Connector is stackable, with 24-position anti-rotation teeth that bite into the lead for a positive hold.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

4530F INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

5, 50

Features

Connectors of different cable gauges can be mixed for maximum application and layout flexibility, Stud battery applications require use of 3/8"–16 closed cap nut, Use with stud batteries, enables multiple battery hook up Stackable, 24-position anti-rotation teeth bite into lead for positive hold

Product Height

0.37 in

SKU

4530-005F, 4530-050F, 4530F

RoHS Compliant

Yes

Production Process

Cast

Product Width

1.68 in

Product Length

2.50 in

Color

Silver

Brand

QUICK

Works With

Stud Batteries

UL / CSA

Yes

Termination Method

Crimp

Termination Material

Copper

Subject to Prop 65

No

Stud Hole Size

3/8 in

SAE

J163, J1811

Plating Material

Tin

Pack Type

Bag

Gauge

3/0

Includes

Fasteners

Application

Crimp, Solder

Product Weight

0.12 lb

Country of Origin

USA
