253203

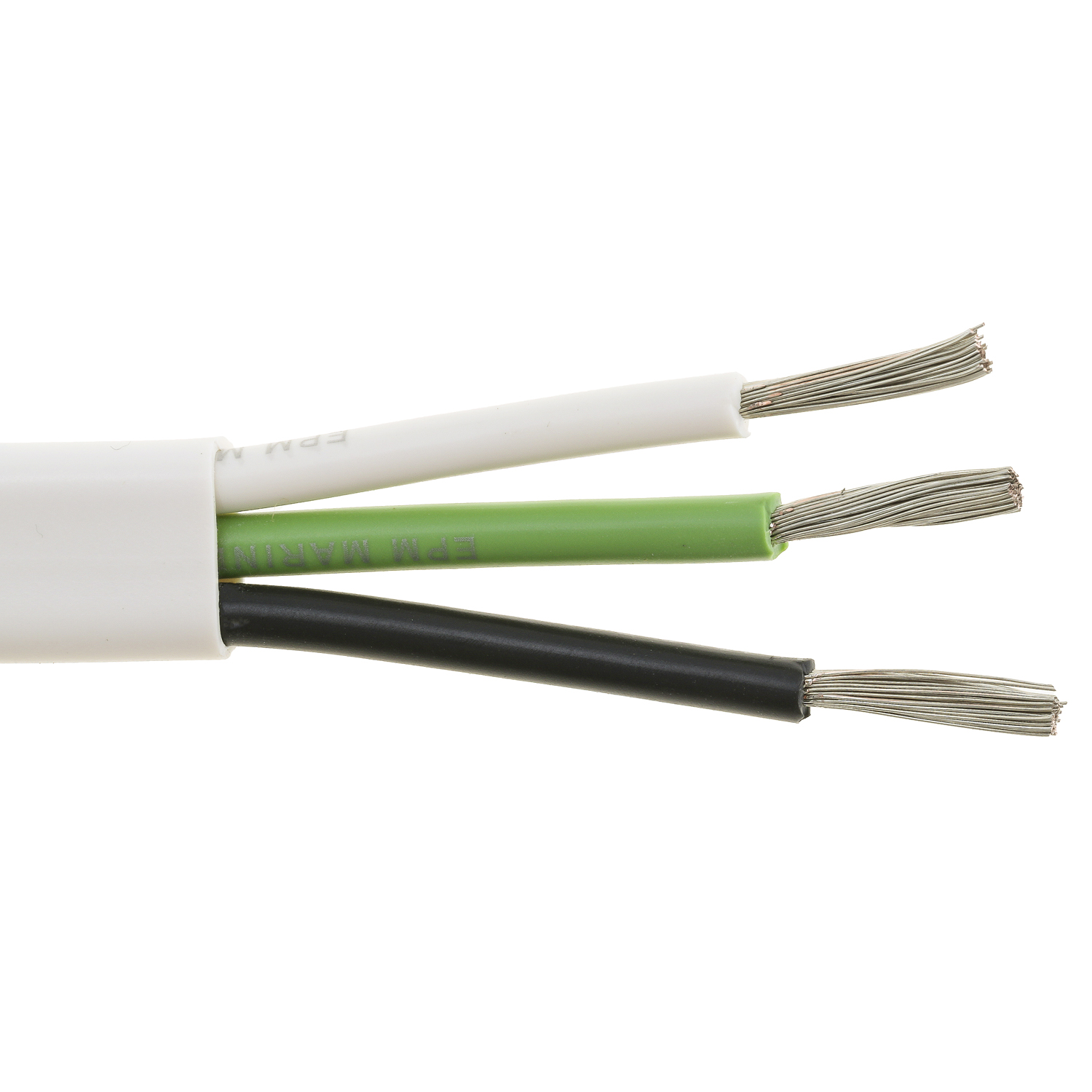

The Jacketed Marine Wire is made of fine-stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100 |
|---|---|
| Features | Fine stranded copper conductor, tin plated for corrosion resistance, Meets DOT specifications |
| Cable Length | 100 ft |
| SKU | 253203, 253203-100 |
| RoHS Compliant | Yes |
| Product Width | 6.25 in |
| Product Length | 6.25 in |
| Color | Black, Green, White |
| Cable Nominal Outer Diameter | 0.235 x 0.565 in |
| Brand | Not branded |
| Works With | Marine Envoirnment |
| Voltage | 600 V |
| UL / CSA | No |
| Temperature Range (°F) | dry 221°F, wet 167°F |
| Temperature Range (°C) | dry 105°C, wet 75°C |
| Subject to Prop 65 | No |
| Strand Gauge | 30 |
| Strand Count | 65 |
| SAE | No |
| Pack Type | Roll |
| Number of Conductors | 3 |
| Insulation Thickness | 0.03 in |
| Insulation Material | PVC |
| Cable Nominal Outer Diameter | |
| Conductor Material | Copper |
| Gauge | 12 |
| Application | Harsh Enviornment |
| Product Weight | 11.00 lb |
| Country of Origin | USA |
