251301

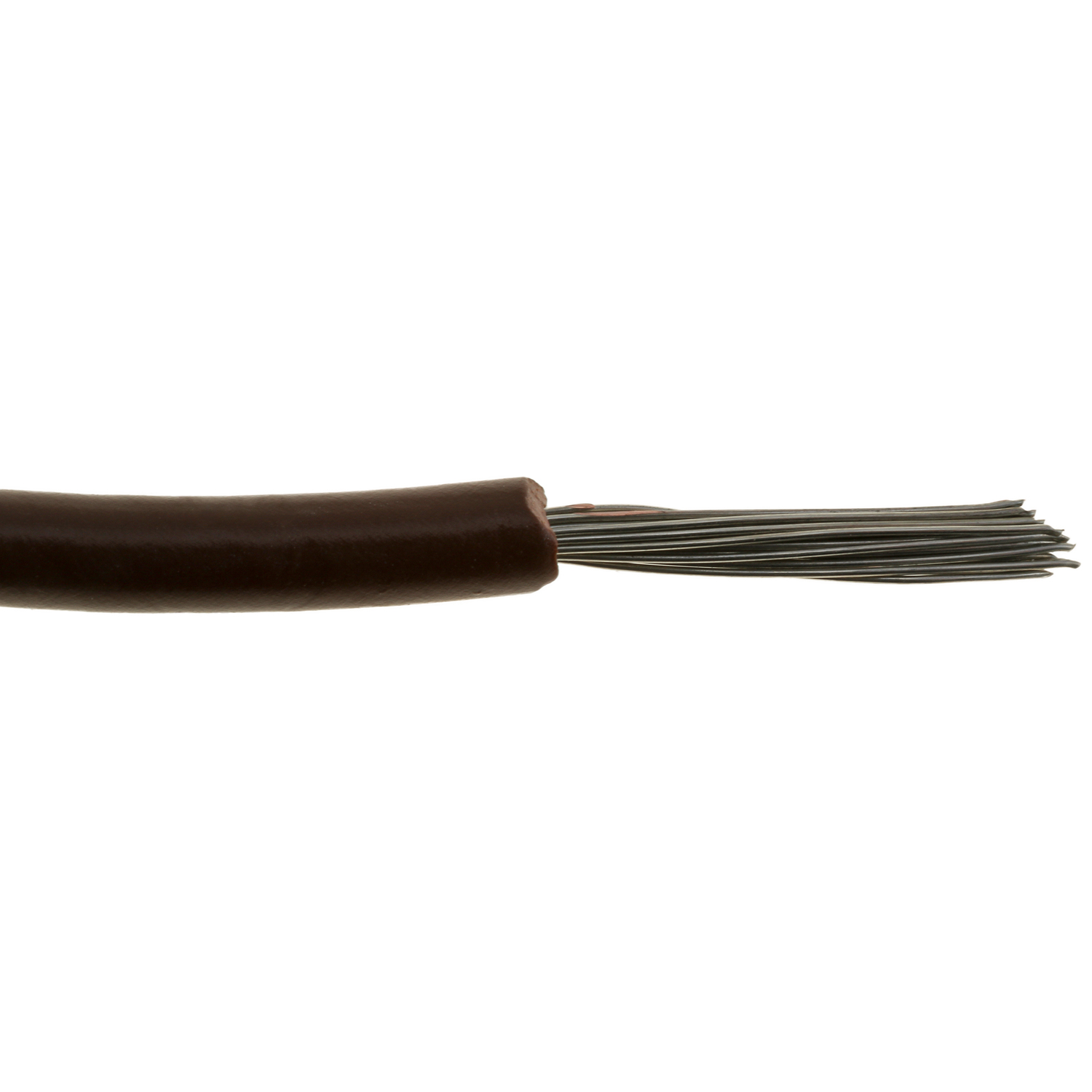

The UL® Marine Primary Wire is made of fine-stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100

Features

Copper stranded conductor for maximum conductivity, tinned for corrosion resistance, gives extra protection in high corrosive marine applications, Meets DOT and Coast Guard specifications for electrical systems

Cable Length

100 ft

SKU

251301, 251301-100

RoHS Compliant

Yes

Product Width

3.50 in

Product Length

3.50 in

Color

Brown

Cable Nominal Outer Diameter

0.12 in

Brand

Not branded

Conductor Plating Material

Tinned

Works With

Automotive Connections

Voltage

600 V

UL / CSA

Yes

Temperature Range (°F)

dry 221°F, wet 167°F

Temperature Range (°C)

dry 105°C, wet 75°C

Subject to Prop 65

Yes

Strand Gauge

30

Strand Count

26

SAE

No

Prop 65 Item

DEHP, DINP

Pack Type

Roll

Insulation Thickness

0.03 in

Insulation Material

PVC

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

16

Application

Marine Applications

Product Weight

1.25 lb

Country of Origin

USA
