236304

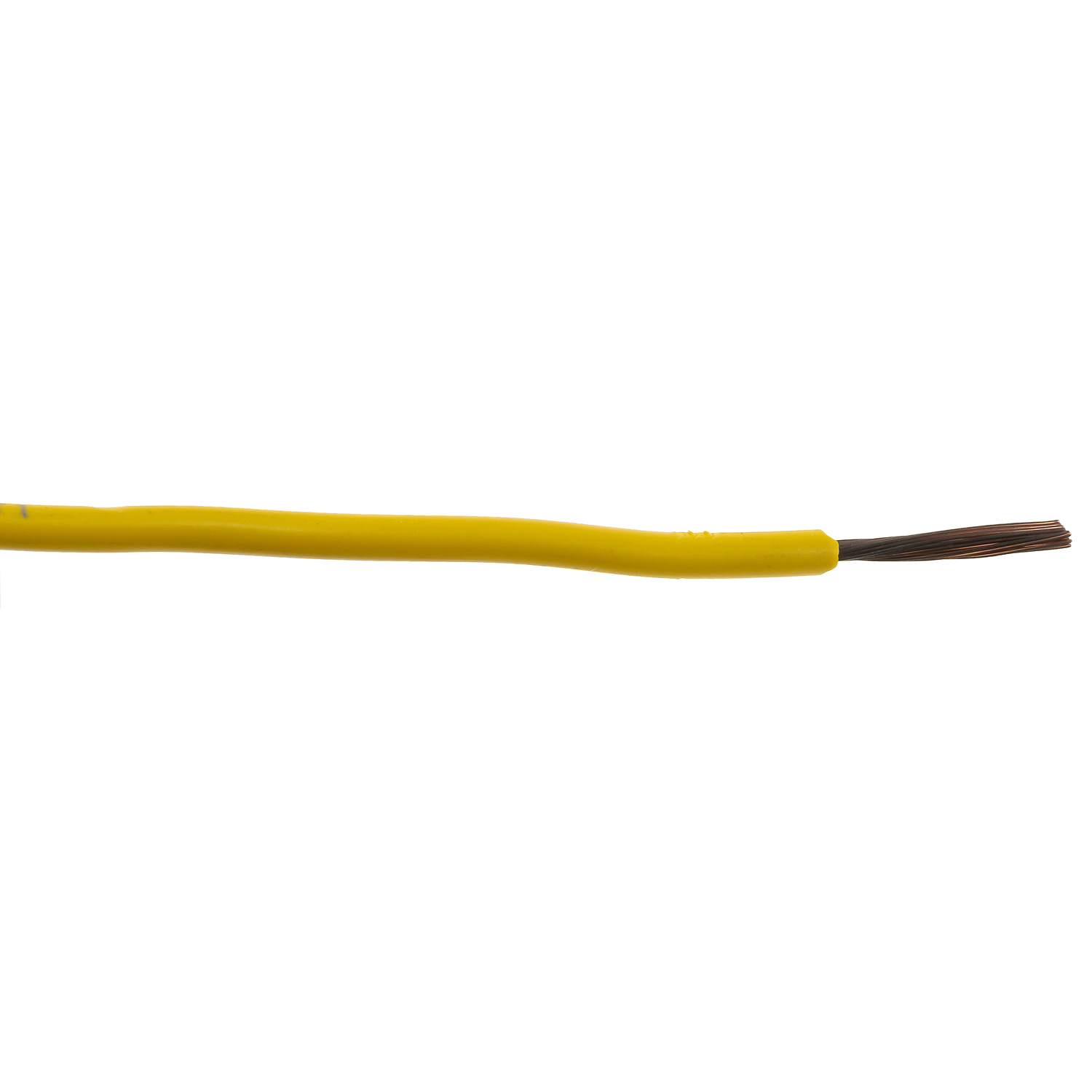

The TEW Primary Wire is suitable for wet or dry applications. It is made of 100% fine-stranded copper and coated with a flexible PVC insulation.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 1000

Features

Copper stranded conductor for maximum conductivity, Designed for wet or dry applications, Temperature range: 221°F (105°C) dry to 140°F (60°C) in oil

Application

Wet or Dry Applications

Gauge

16

Conductor Material

Copper

Cable Nominal Outer Diameter

Insulation Material

PVC

Insulation Thickness

0.03 in

Pack Type

Roll

Prop 65 Item

DEHP, DINP

RoHS

Yes

SAE

No

Strand Count

26

Strand Gauge

30

Subject to Prop 65

Yes

Temperature Range (°C)

-40 to 105°C

Temperature Range (°F)

-40 to 221°F

UL - CSA

Yes

Voltage

600 V

Works With

Automotive Connections

Country of Origin

USA
