234101

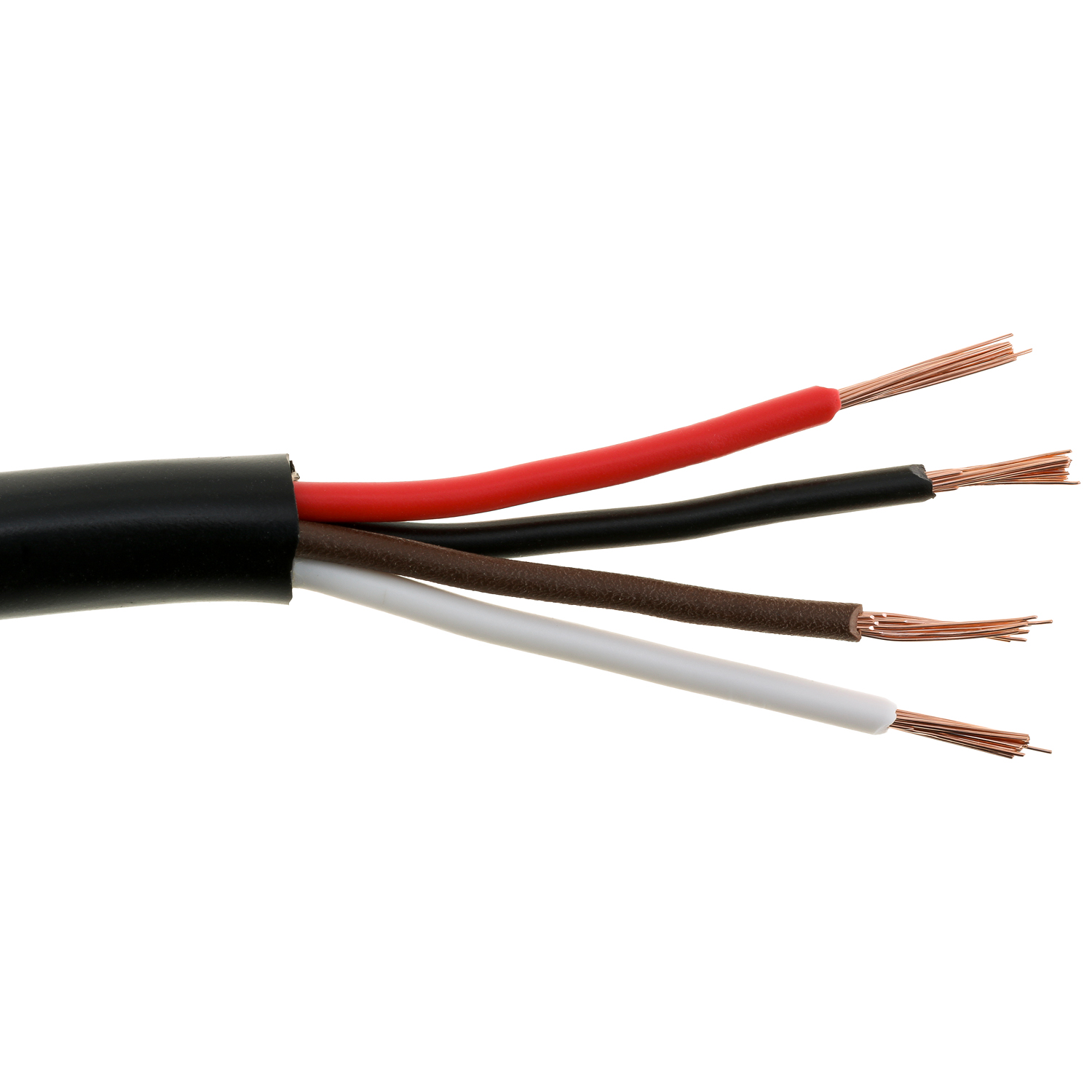

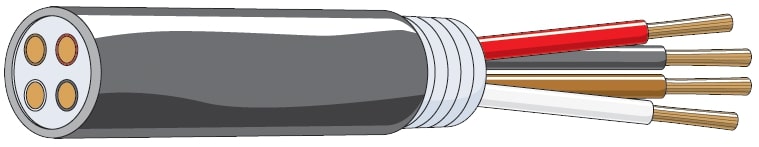

The Trailer Cable is used for truck, bus, farm, construction and commercial applications at 60 volts or less.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 500

Features

Fine-stranded copper conductor for maximum conductivity and flexibility, Flexible for easy routing, For use at 60V or less, Heavy duty PVC outer jacket protects against abrasion and resists moisture, oil and salt damage, Meets or exceeds SAE J1128 and ATA specifications

Product Height

9.50 in

Cable Length

100 ft, 500 ft

SKU

234101, 234101-100, 234101-500

RoHS Compliant

Yes

Product Width

17.50 in

Product Length

17.50 in

Color

Black, Brown, Red, White

Cable Nominal Outer Diameter

0.34 in

Brand

Not branded

Works With

Junction Blocks

Voltage

60 V

UL / CSA

No

Temperature Range (°F)

-85 to 176°F

Temperature Range (°C)

-65 to 80°C

Subject to Prop 65

Yes

Strand Gauge

30

Strand Count

16

SAE

J1128, J378

Prop 65 Item

DEHP, DINP

Pack Type

Roll

Number of Conductors

4

Insulation Thickness

0.06 in

Insulation Material

PVC

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

16

Application

llTruck, bus, farm construction and commercial applications

Product Weight

60.00 lb, 9.19 lb

Country of Origin

USA
