233204

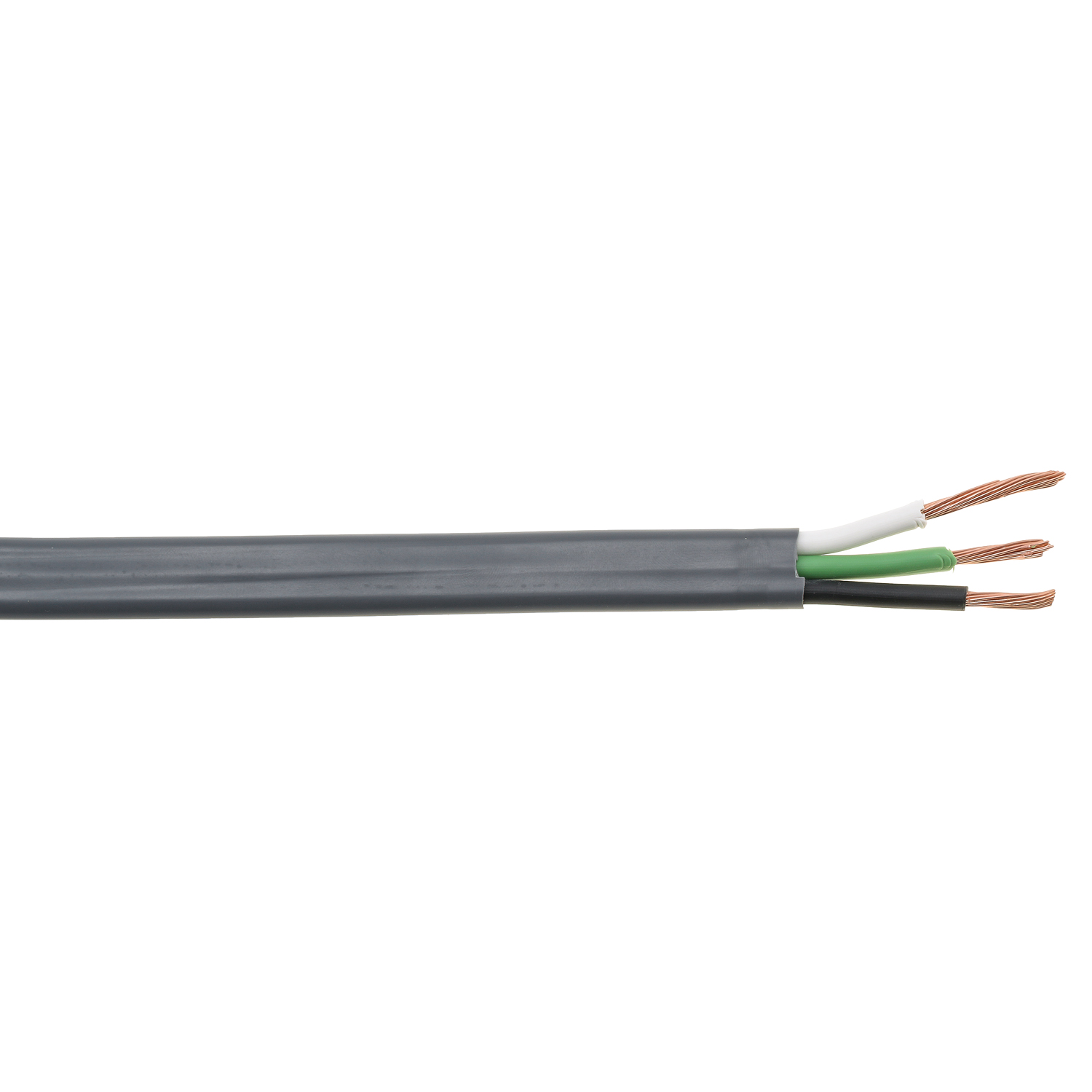

The Multi Conductor Flat Jacketed Control Cable is made of fine-stranded copper conductor for maximum conductivity and flexibility. It is ideally suited for auto, truck, agriculture, construction, and light marine applications.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100

Features

Also known as Brake Cable, Copper stranded conductor for maximum conductivity, For use at 60V or less, Heavy duty flat PVC gray outer jacket is abrasionresistant and protects against moisture, oil, acid and salt

Application

Auto, truck, agriculture, construction and light marine applications

Gauge

10

Conductor Material

Copper

Cable Nominal Outer Diameter

Insulation Material

PVC

Insulation Thickness

0.02 in

Jacket Material

PVC

Jacket Thickness

0.03 in

Number of Conductors

3

Pack Type

Roll

SAE

J1128, J1128, J378

Strand Count

19

Strand Gauge

25

Subject to Prop 65

No

Temperature Range (°C)

-40 to 105°C

Temperature Range (°F)

-40 to 221°F

UL / CSA

No

Voltage

60 V

Works With

50 V or Less

Brand

Not branded

Cable Nominal Outer Diameter

0.202 x 0.486 in

Color

Black, Green, White

Product Length

6.25 in

Product Width

6.25 in

RoHS Compliant

Yes

SKU

233204, 233204-100

Cable Length

100 ft

Product Weight

15.00 lb

Country of Origin

USA
