232201

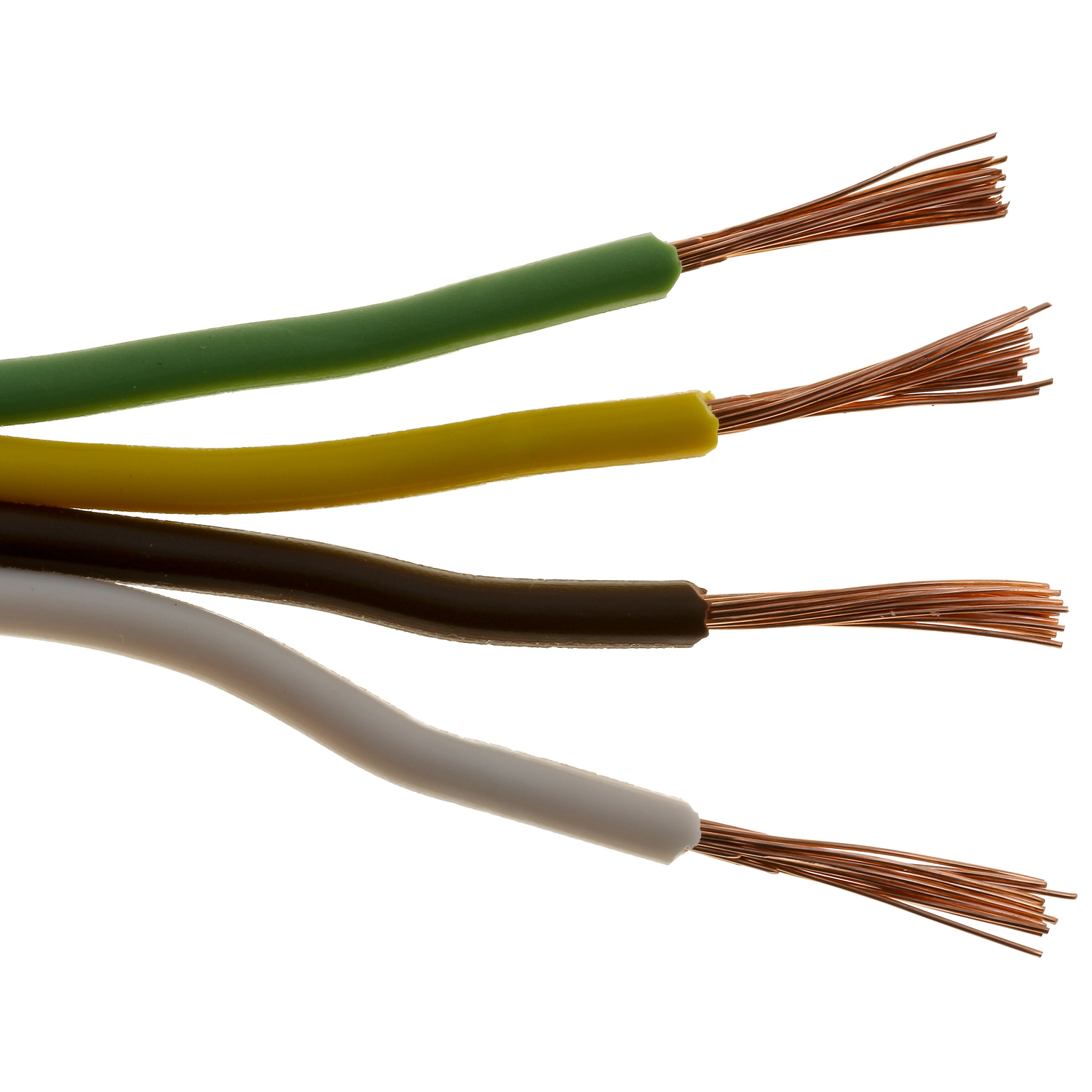

The Parallel Bonded Control Cable is made of fine-stranded copper conductor for maximum conductivity and flexibility. It is designed for RV’s, boat, and utility trailers.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 1000

Features

Copper stranded conductor for maximum conductivity, Easily separated conductors are user friendly, For use at 60V or less, PVC insulation is abrasion-resistant and protects against moisture, oil, acid and salt

Application

Designed for RVs and utility trailers

Gauge

16

Conductor Material

Copper

Cable Nominal Outer Diameter

Insulation Material

PVC

Insulation Thickness

0.01 in

Number of Conductors

4

Pack Type

Roll

SAE

J1128

Strand Count

19

Strand Gauge

29

Subject to Prop 65

No

Temperature Range (°C)

-40 to 80°C

Temperature Range (°F)

-40 to 176°F

UL / CSA

No

Voltage

60 V

Works With

50 V or Less

Brand

Not branded

Cable Nominal Outer Diameter

0.102 x 0.408 in

Color

Brown, Green, White, Yellow

Product Length

12.00 in, 6.25 in

Product Width

12.00 in, 6.25 in

RoHS Compliant

Yes

SKU

232201, 232201-100, 232201-1000

Cable Length

100 ft, 1000 ft

Product Weight

16.00 lb, 7.00 lb

Country of Origin

USA
