231310

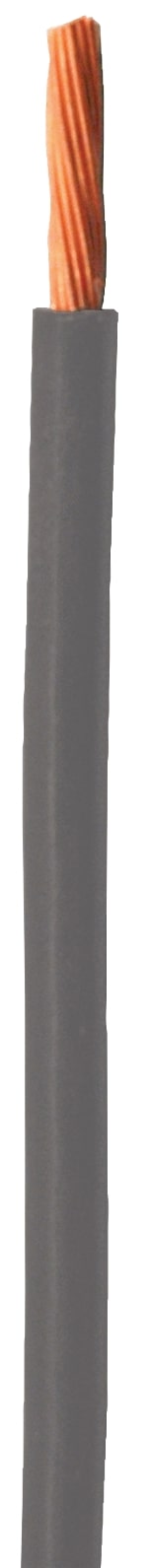

The SXL Cross-Link Polyethylene Primary Wire is designed for harsh, hot environments. It is made of 100% fine-stranded copper and coated with a flexible PVC insulation.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100

Features

Best resistance to abrasion, fuel, oil, acid and salt, Copper stranded conductor for maximum conductivity, Designed for harsh, hot environments

Application

Hard Enviornments

Gauge

16

Conductor Material

Copper

Cable Nominal Outer Diameter

Insulation Material

XLPE

Insulation Thickness

0.03 in

Pack Type

Roll

Prop 65 Item

DEHP, DINP

RoHS

Yes

SAE

J1128

Strand Count

19

Strand Gauge

29

Subject to Prop 65

Yes

Temperature Range (°C)

-51 to 125°C

Temperature Range (°F)

-60 to 257°F

UL - CSA

Yes

Voltage

60 V

Works With

Automotive Connections

Country of Origin

USA
