231209

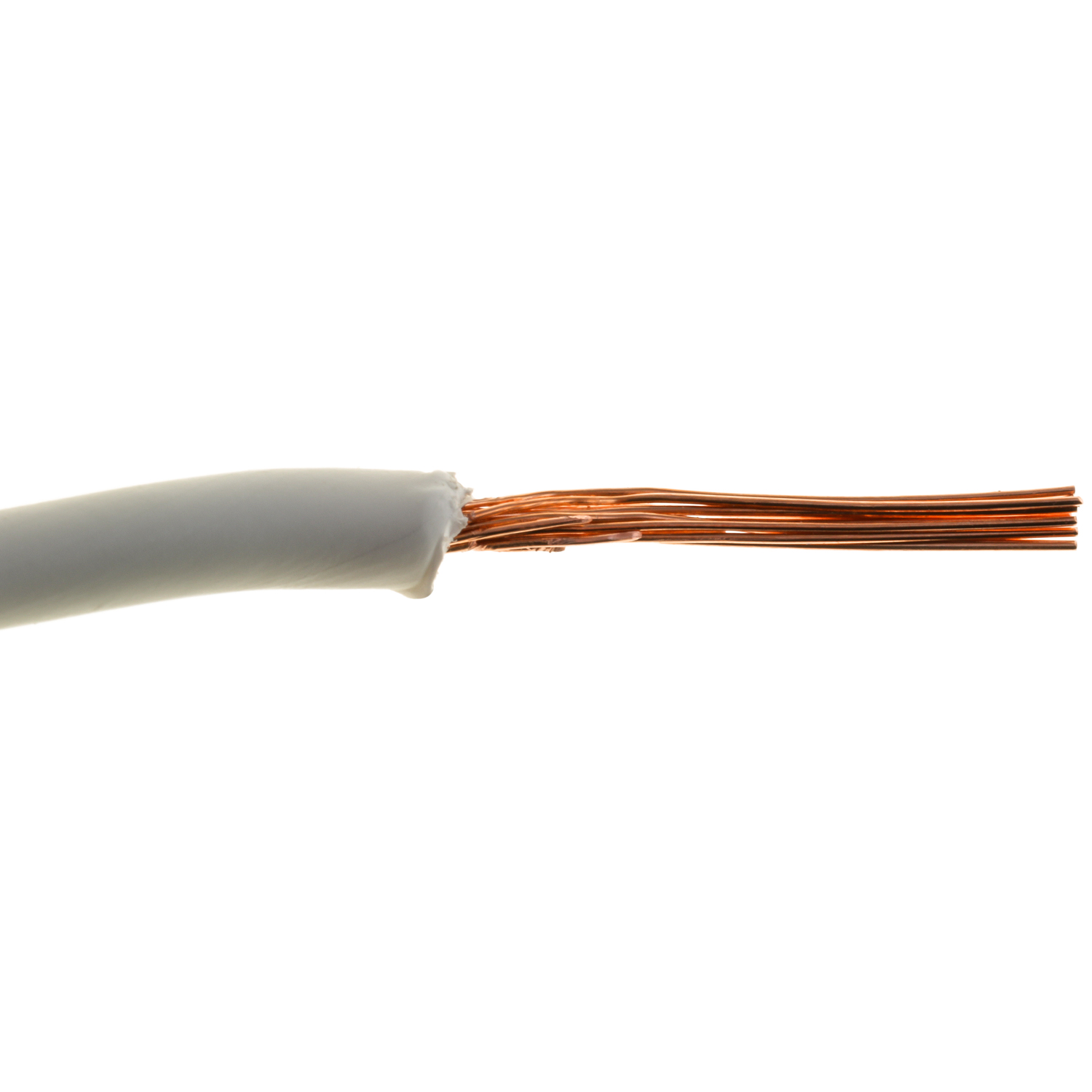

The SXL Cross-Link Polyethylene Primary Wire is designed for harsh, hot environments. It is made of 100% fine-stranded copper and coated with a flexible PVC insulation.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 1000

Features

Best resistance to abrasion, fuel, oil, acid and salt, Copper stranded conductor for maximum conductivity, Designed for harsh, hot environments

Cable Length

100 ft, 1000 ft

SKU

231209, 231209-100, 231209-1000

RoHS Compliant

Yes

Product Width

3.50 in, 6.43 in

Product Length

3.50 in, 6.43 in

Color

White

Cable Nominal Outer Diameter

0.10 in

Brand

Not branded

Works With

Automotive Connections

Voltage

60 V

UL / CSA

Yes

Temperature Range (°F)

-60 to 257°F

Temperature Range (°C)

-51 to 125°C

Subject to Prop 65

Yes

Strand Gauge

30

Strand Count

16

SAE

J1128

Prop 65 Item

DEHP, DINP

Pack Type

Roll

Insulation Thickness

0.03 in

Insulation Material

XLPE

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

18

Application

Hard Enviornments

Product Weight

1.00 lb, 12.00 lb

Country of Origin

USA
