230406

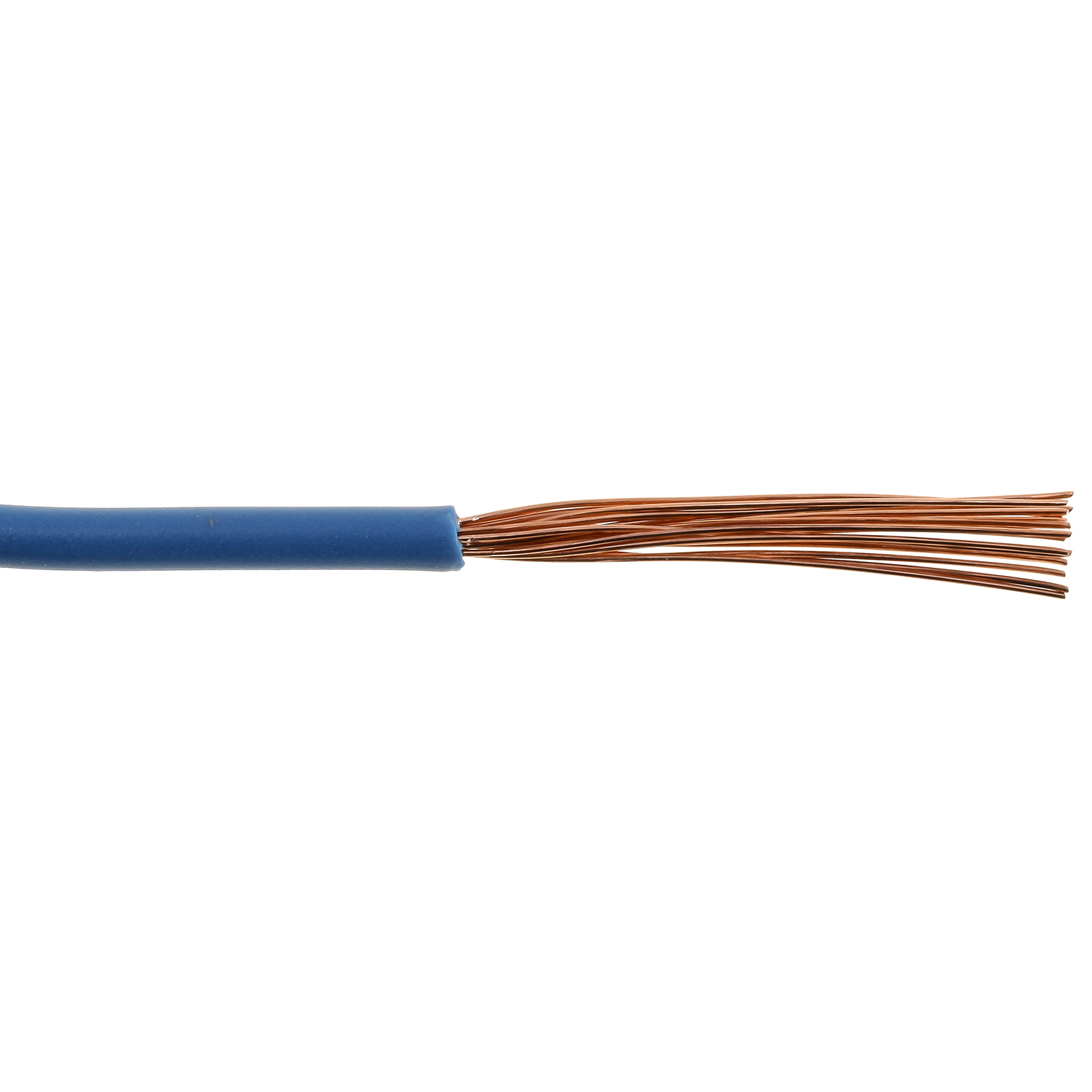

The GPT General Purpose Primary Wire is constructed from fine-stranded copper and coated with a flexible PVC insulation.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 1000, 25

Features

Copper stranded conductor for maximum conductivity, For use at 60V or less, Meets or exceeds SAE J1128, PVC insulation resists abrasion, fuel, oil, acid and salt

Application

General Purpose

Gauge

14

Conductor Material

Copper

Cable Nominal Outer Diameter

Insulation Material

PVC

Insulation Thickness

0.023 in

Pack Type

Roll

Prop 65 Item

DEHP, DINP, NA

RoHS

Yes

SAE

J1128

Strand Count

19

Strand Gauge

27

Subject to Prop 65

YES

Temperature Range (°C)

-40 to 80°C

Temperature Range (°F)

-40 to 176°F

UL - CSA

No

Voltage

60 V

Works With

Automotive Connections

Country of Origin

USA
