230300

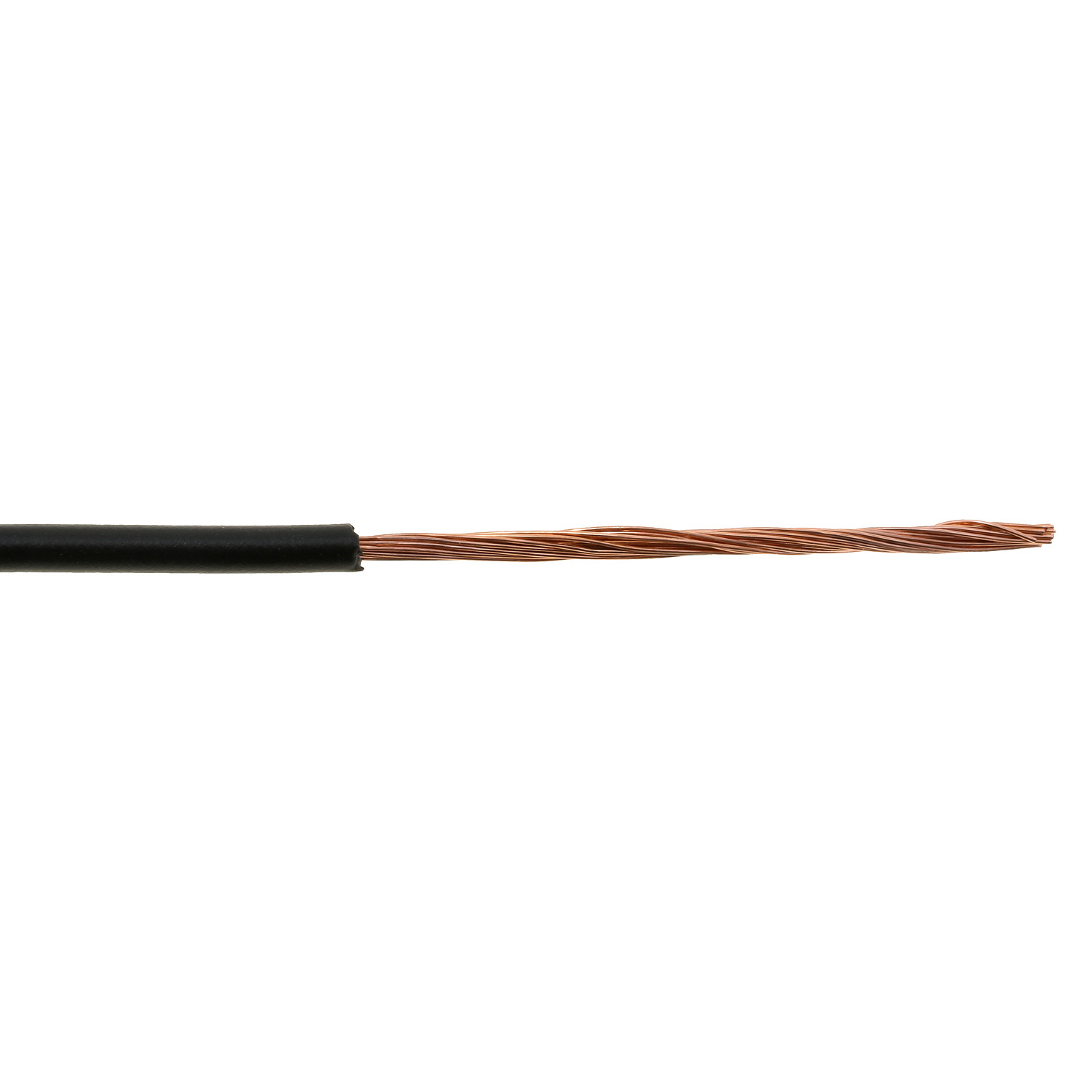

The GPT General Purpose Primary Wire is constructed from fine-stranded copper and coated with a flexible PVC insulation.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 1000, 35

Features

Copper stranded conductor for maximum conductivity, For use at 60V or less, Meets or exceeds SAE J1128, PVC insulation resists abrasion, fuel, oil, acid and salt

RoHS Compliant

Yes

Product Width

2.12 in, 3.50 in, 6.44 in

Product Length

2.12 in, 3.50 in, 6.44 in

Color

Black

Cable Nominal Outer Diameter

0.102 in

Brand

Not branded

Works With

Automotive Connections

Voltage

60 V

UL / CSA

No

Temperature Range (°F)

-40 to 176°F

Temperature Range (°C)

-40 to 80°C

Subject to Prop 65

Yes

Strand Gauge

29

Strand Count

19

SAE

J1128

Prop 65 Item

DEHP, DINP

Pack Type

Roll

Insulation Thickness

0.023 in

Insulation Material

PVC

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

16

Application

General Purpose

SKU

230300, 230300-035, 230300-100, 230300-1000, 230300-2035

Country of Origin

USA
