220104

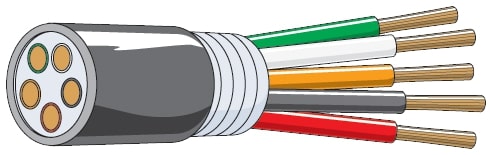

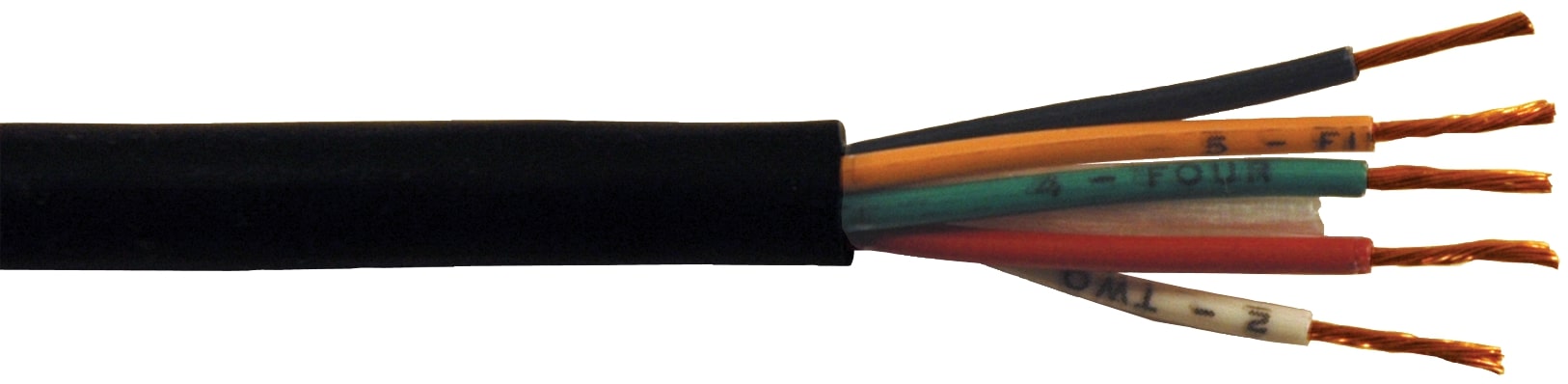

The TC Control Cable is made of fine-stranded copper conductor for maximum conductivity and flexibility.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100

Features

600V, UL and CSA certified for indoor or outdoor use, Arctic-grade neoprene, flame-retardant jacket, resistant to oil abrasion, sunlight, acids and alkaline, Fine-stranded copper conductor for maximum conductivity and flexibility, Flexible insulation for easy routing and long, reliable life, Jute or nylon filter with mylar binder to reduce friction, Small-diameter neoprene flexible TC type cable

RoHS Compliant

Yes

Product Type

TC Cable

Product Width

6.00 in

Product Length

14.00 in

Color

Black, Blue, Orange, Red, Yellow

Cable Nominal Outer Diameter

0.33 in

Brand

Not branded

Works With

Maintenance Equipment

Voltage

600 V

UL / CSA

No

Temperature Range (°F)

-67 to 194°F

Temperature Range (°C)

-55 to 90°C

Subject to Prop 65

Yes

Strand Gauge

30

Strand Count

16

SAE

No

Prop 65 Item

DEHP, DINP

Pack Type

Roll

Number of Conductors

5

Insulation Thickness

0.02 in

Insulation Material

Neoprene

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

18

Application

For aerial and work platforms, forklift trucks, maintenance equipment

SKU

220104, 220104-100

Country of Origin

USA
