202206

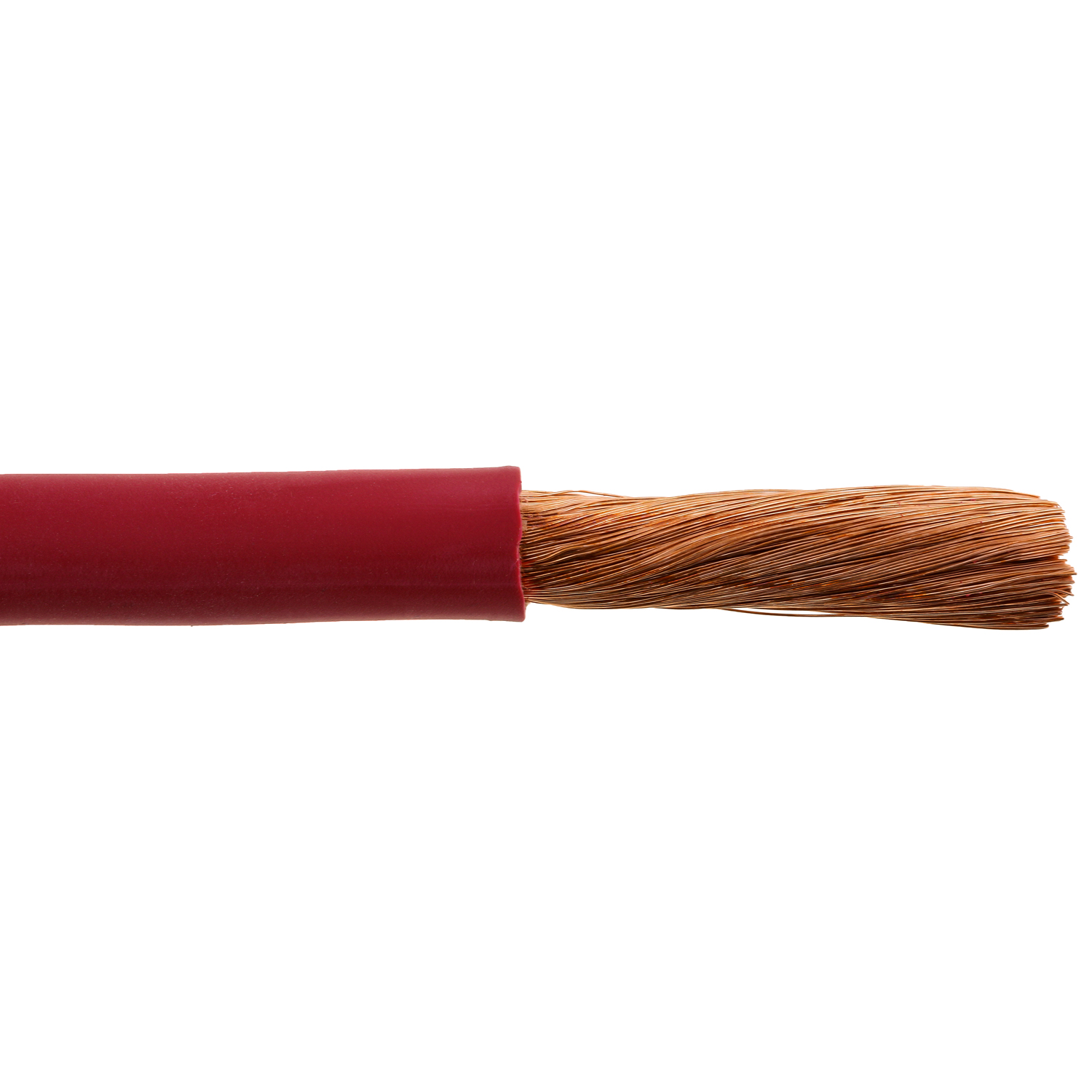

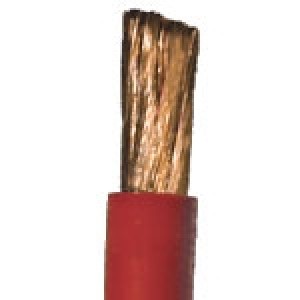

Our QuickFlex® Welding Cable is made of very fine copper wire strands and insulated with synthetic rubber. It is more flexible than battery cable, especially in cold temperatures, and is easier to route into tight spaces.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

10, 100, 25, 250, 50, 500

Features

Abrasion salt and chemical-resistant synthetic rubber insulation, Fine-stranded copper conductor for maximum conductivity and flexibility, Good flame resistance

Cable Length

10 ft, 100 ft, 25 ft, 250 ft, 50 ft, 500 ft

SKU

202206, 202206-010, 202206-025, 202206-050, 202206-100, 202206-250, 202206-500

RoHS Compliant

Yes

Product Width

1.62 in, 10.25 in, 12.00 in, 6.00 in

Product Length

10.25 in, 12.00 in, 14.00 in

Color

Red

Cable Nominal Outer Diameter

0.53 in

Brand

Not branded

Works With

Copper Connectors

Voltage

600 V

UL / CSA

No

Temperature Range (°F)

-58 to 221°F

Temperature Range (°C)

-50 to 105°C

Subject to Prop 65

No

Strand Gauge

30

Strand Count

1026

SAE

No

Pack Type

Roll

Insulation Thickness

0.08 in

Insulation Material

Synthetic Rubber

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

1/0

Application

Power Supply, Welding

Product Weight

105.98 lb, 19.75 lb, 199.45 lb, 39.66 lb, 4.05 lb, 9.80 lb

Country of Origin

USA
