200501

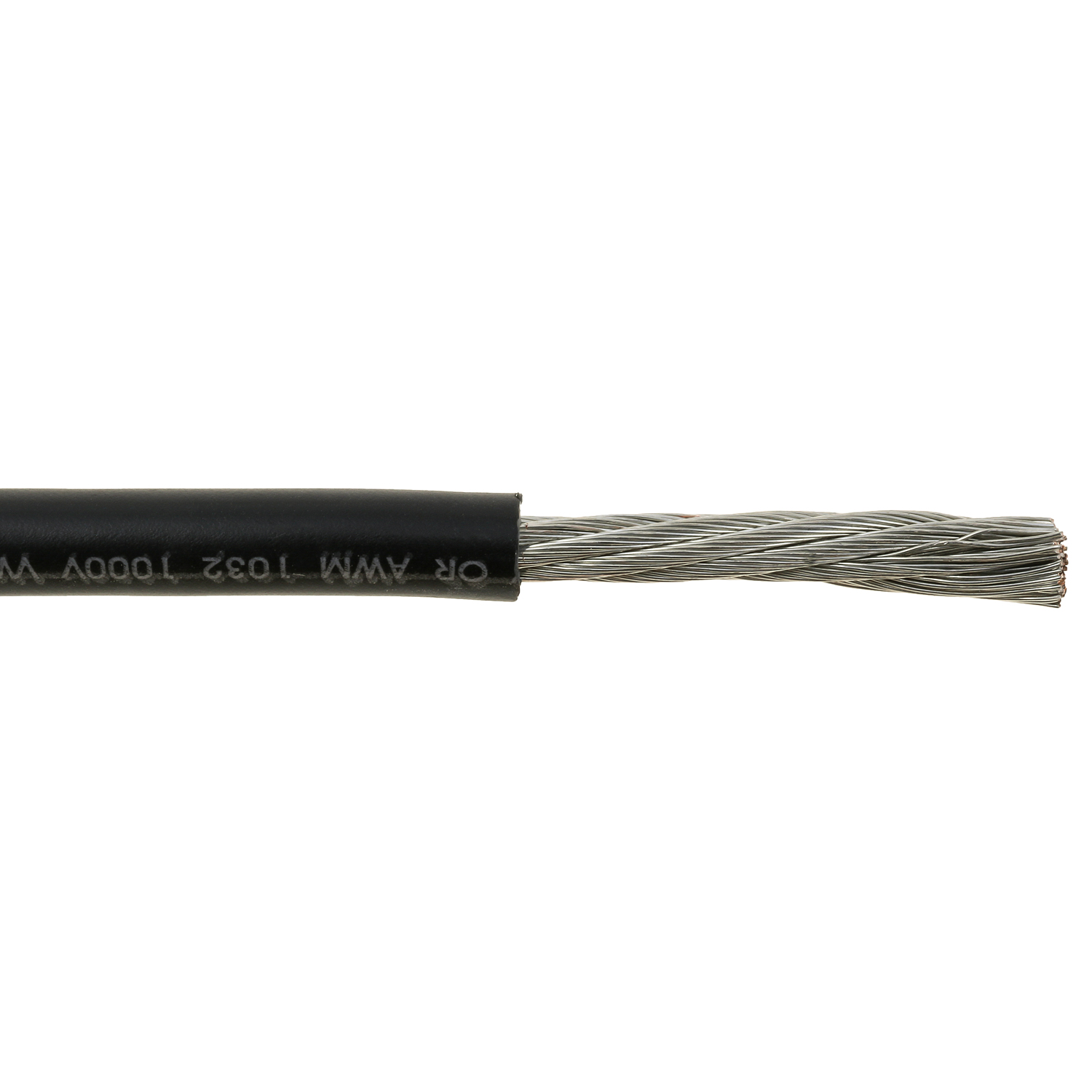

The UL® Marine Battery Cable is made of fine-stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 50

Features

Enhanced oil, fuel and acid resistance, Fine-stranded copper conductor, tin-plated, for maximum conductivity, flexibility and corrosion resistance, Highly abrasion-resistant, UL listed BC-5W2 boat cable

Cable Length

100 ft, 50 ft

SKU

200501, 200501-050, 200501-100

RoHS Compliant

No

Product Width

1.62 in, 14.50 in

Product Length

10.25 in, 14.50 in

Color

Black

Cable Nominal Outer Diameter

0.260 in

Brand

Not branded

Conductor Plating Material

Tinned

Works With

Copper Connectors

Voltage

600 V

UL / CSA

Yes

Temperature Range (°F)

dry 221°F, wet 193°F

Temperature Range (°C)

dry 105°C, wet 75°C

Subject to Prop 65

Yes

Strand Gauge

29

Strand Count

133

SAE

No

Prop 65 Item

DEHP, DINP

Pack Type

Roll

Insulation Thickness

0.06 in

Insulation Material

PVC

Insulation Color

Black

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

8

Application

Marine

Product Weight

4.00 lb, 8.00 lb

Country of Origin

USA
