200107

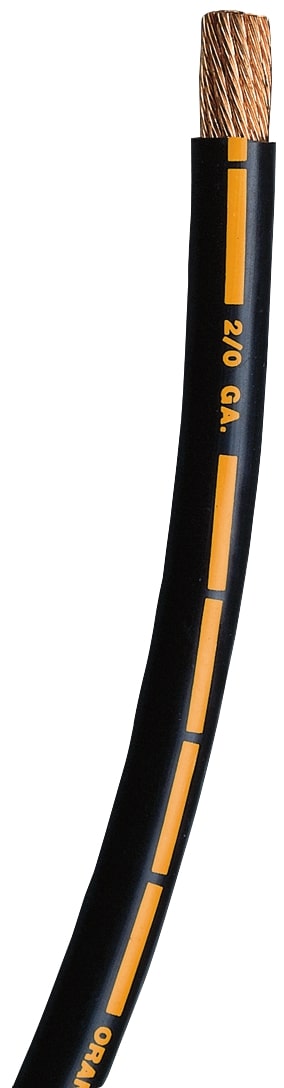

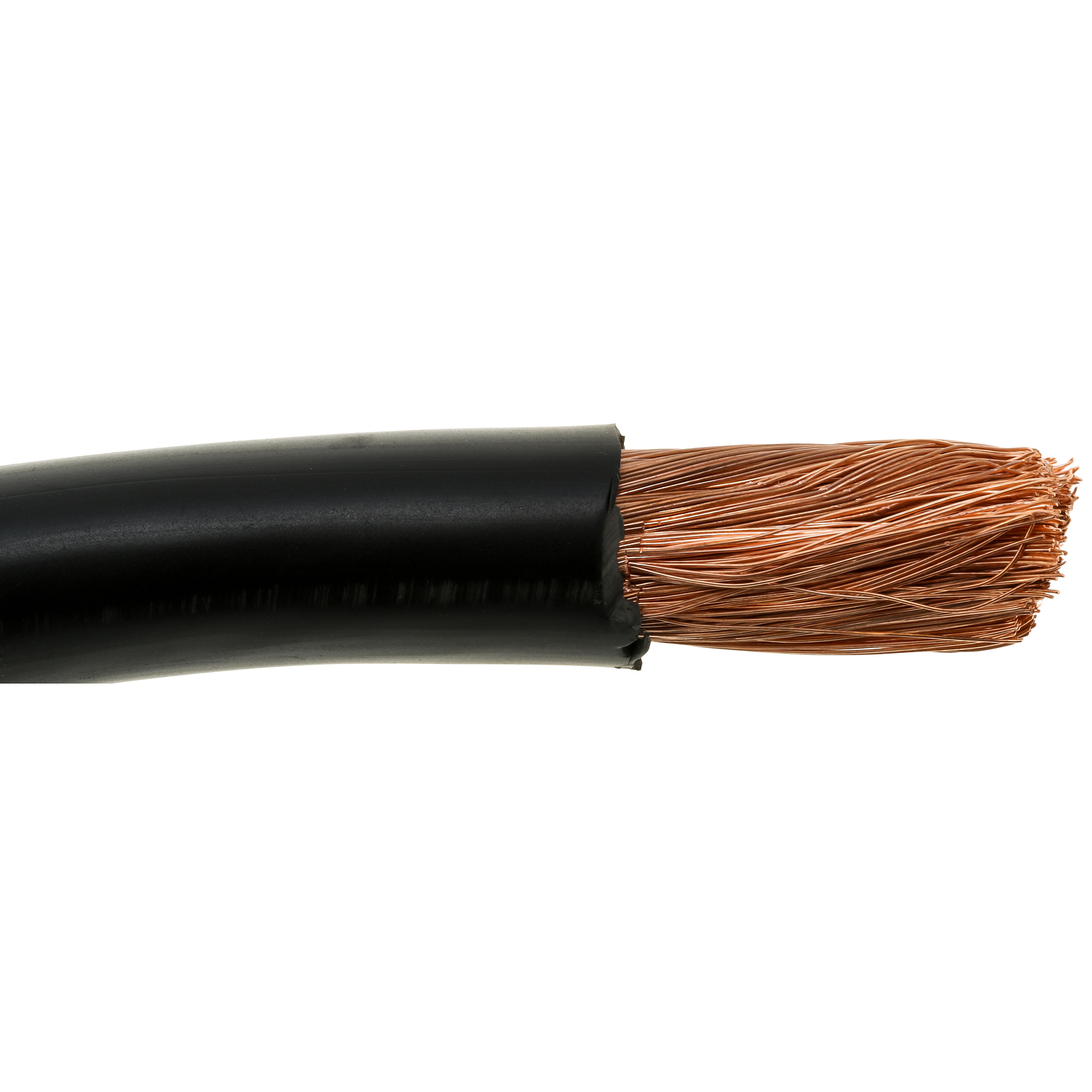

The Standard Battery Cable is made of annealed, stranded copper conductor and flame retardant PVC insulation which meets SAE, J1128 and AWG specifications.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

10, 100, 25, 250, 50, 500

Features

Copper conductor for maximum conductivity, Insulation is flame-retardant, Meets or exceeds SAE J1127, SGT type, PVC insulation resists abrasion, fuel, oil, acid and salt

Cable Length

10 ft, 100 ft, 25 ft, 250 ft, 50 ft, 500 ft

SKU

200107, 200107-010, 200107-025, 200107-050, 200107-100, 200107-250, 200107-500

RoHS Compliant

Yes

Product Width

1.62 in, 10.25 in, 12.00 in, 6.00 in

Product Length

10.25 in, 12.00 in, 14.00 in

Color

Black

Cable Nominal Outer Diameter

0.60 in

Brand

Not branded

Works With

Copper Connectors

Voltage

60 V

UL / CSA

No

Temperature Range (°F)

-58 to 221°F

Temperature Range (°C)

-50 to 105°C

Subject to Prop 65

Yes

Strand Gauge

20

Strand Count

133

SAE

J1127

Prop 65 Item

DEHP, DINP

Pack Type

Roll

Insulation Thickness

0.045 in

Insulation Material

PVC

Cable Nominal Outer Diameter

Conductor Material

Copper

Gauge

2/0

Application

Automotive, Commercial, Industrial, Truck

Product Weight

12.29 lb, 171.75 lb, 24.60 lb, 328.55 lb, 4.89 lb, 49.08 lb

Country of Origin

USA
