166404

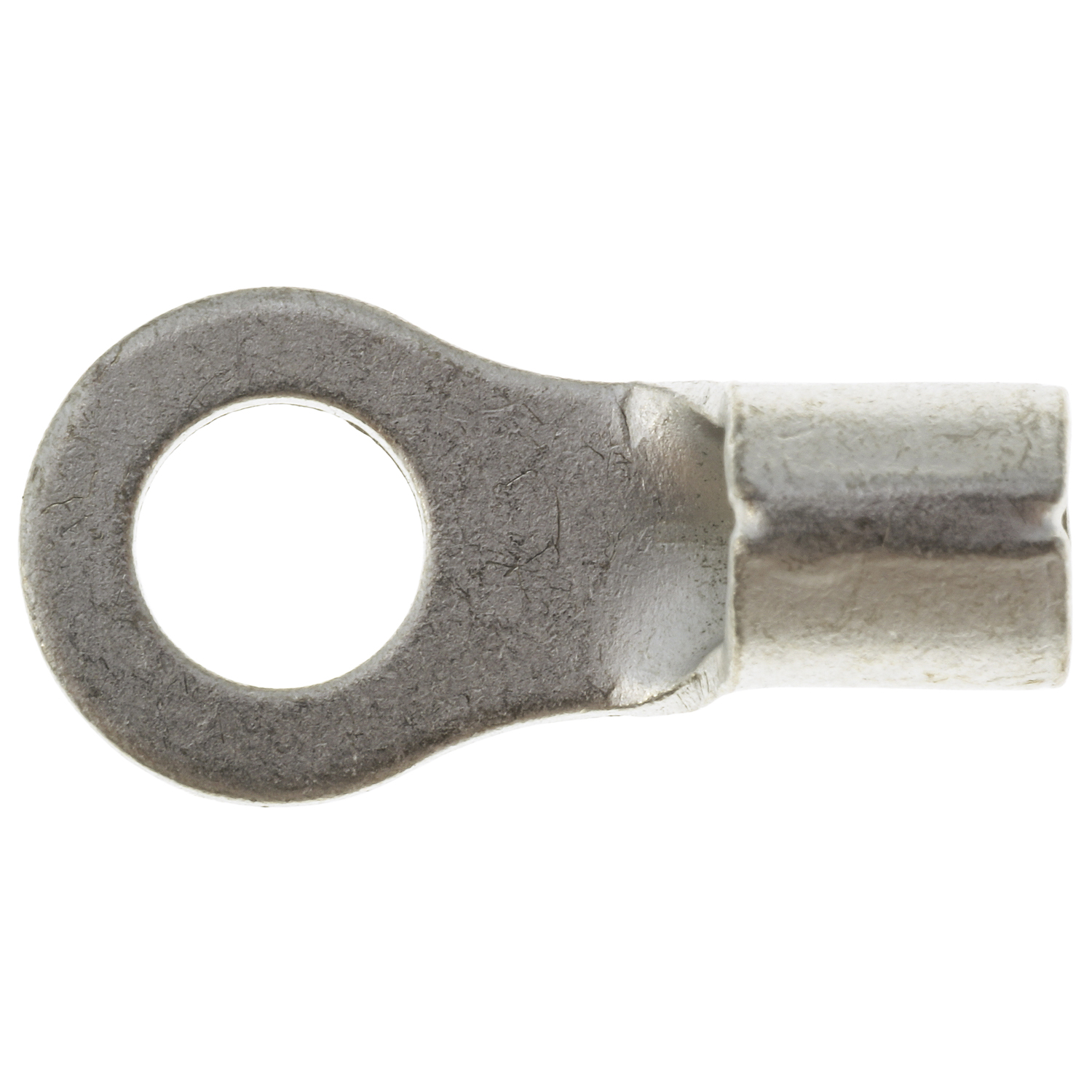

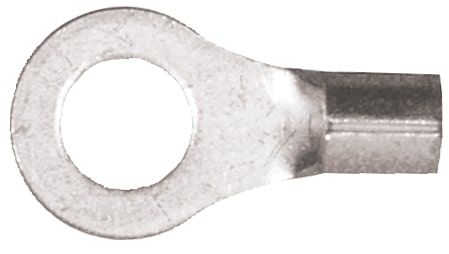

The Non-Insulated Solderless Ring has a serrated barrel for greater wire retention and pullout strength.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100, 1000, 50 |
|---|---|
| Features | Serrated barrels for greater wire retention/pullout strength, Tin-plated, annealed copper for improved corrosion resistance, maximum conductivity and crimp strength |
| Application | General Purpose |
| Gauge | 10, 12 |
| Insulation Material | Copper |
| Maximum Voltage | 600 V |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | No |
| Stud/Tab Size | #10 |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | No |
| Works With | Primary Wire |
| Brand | Not branded |
| Color | Silver |
| Product Length | 0.89 in |
| Product Width | 0.75 in |
| Product Type | Ring Terminal |
| RoHS Compliant | Yes |
| SKU | 166404, 166404-050, 166404-100, 166404-1000 |
| Product Height | 0.22 in |
| Product Weight | 0.003 lb |
| Country of Origin | Taiwan |
