166204

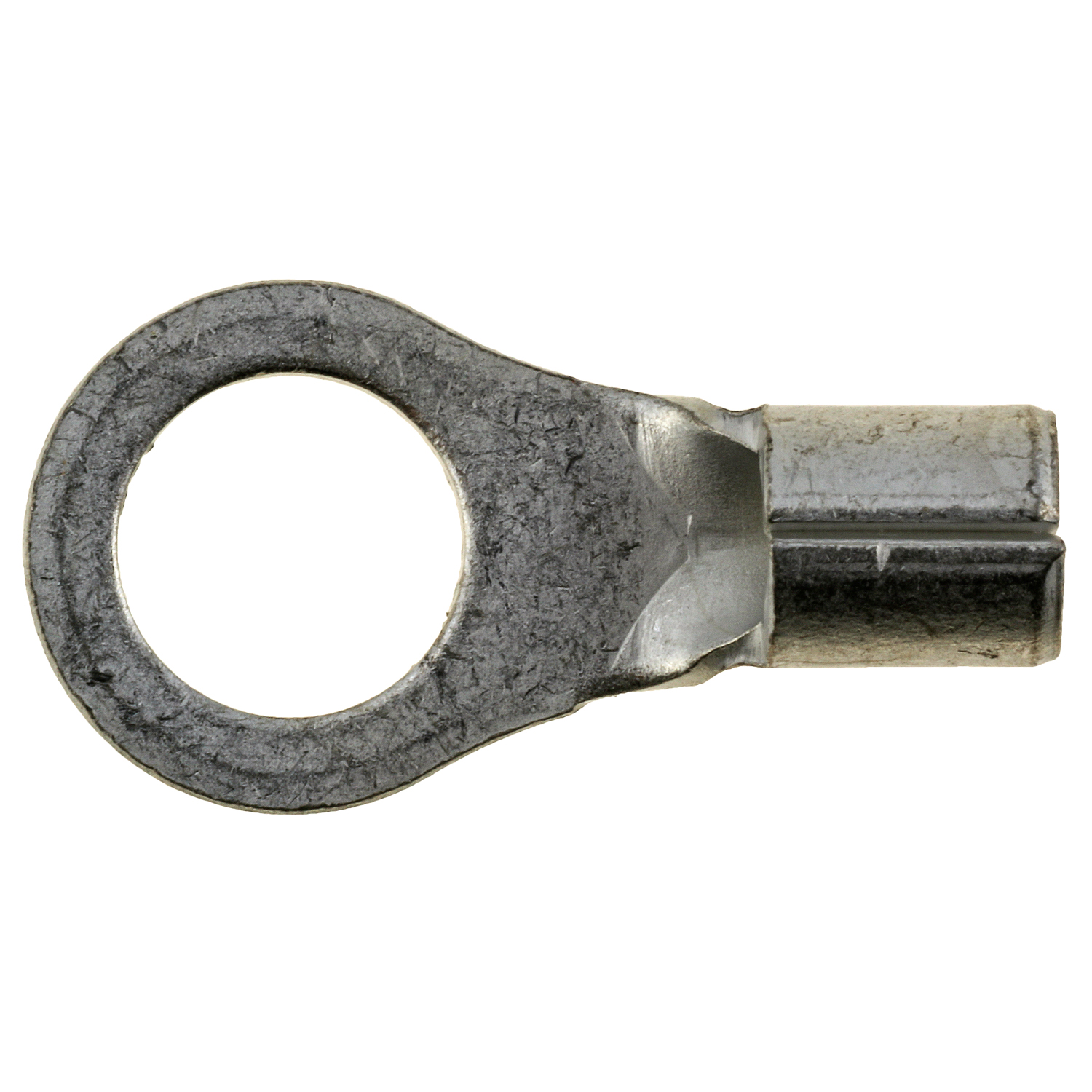

The Non-Insulated Solderless Ring has a serrated barrel for greater wire retention and pullout strength.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100, 1000, 50 |
|---|---|
| Features | Serrated barrels for greater wire retention/pullout strength, Tin-plated, annealed copper for improved corrosion resistance, maximum conductivity and crimp strength |
| Product Height | 0.16 in |
| SKU | 166204, 166204-050, 166204-100, 166204-1000 |
| RoHS Compliant | Yes |
| Product Type | Ring Terminal |
| Product Width | 0.33 in |
| Product Length | 0.65 in |
| Color | Silver |
| Brand | Not branded |
| Works With | Primary Wire |
| UL / CSA | No |
| Termination Method | Crimp |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| Stud/Tab Size | #10 |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Maximum Voltage | 600 V |
| Insulation Material | Copper |
| Gauge | 14, 16 |
| Application | General Purpose |
| Product Weight | 0.001 lb |
| Country of Origin | Taiwan |
