166126

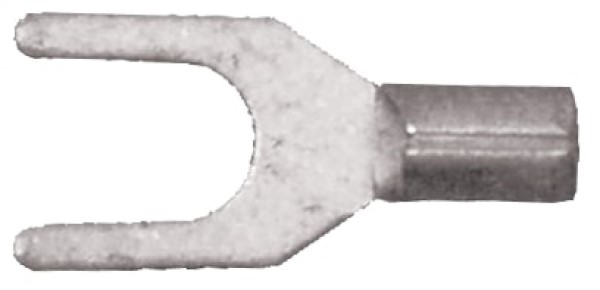

The Non-Insulated Solderless Spade is made of tin-plated, annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100 |
|---|---|
| Features | OEM Non-Insulated Solderless Terminals, Serrated barrels for greater wire retention/pullout strength, Tin plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength |
| Product Height | 0.13 in |
| SKU | 166126, 166126-100 |
| RoHS Compliant | Yes |
| Product Type | Spade Terminal |
| Product Width | 0.37 in |
| Product Length | 0.63 in |
| Color | Silver |
| Brand | Not branded |
| Works With | Primary Wire |
| UL / CSA | No |
| Termination Method | Crimp |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| Stud/Tab Size | #10 |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Gauge | 18, 20, 22 |
| Application | General Purpose |
| Product Weight | 0.001 lb |
| Country of Origin | Taiwan |
