166105

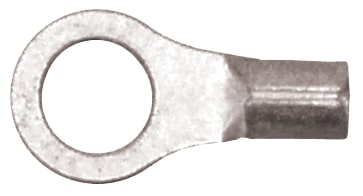

The Non-Insulated Solderless Ring has a serrated barrel for greater wire retention and pullout strength.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

100, 1000, 50

Features

Serrated barrels for greater wire retention/pullout strength, Tin-plated, annealed copper for improved corrosion resistance, maximum conductivity and crimp strength

Product Height

0.13 in

RoHS Compliant

Yes

Product Type

Ring Terminal

Product Width

0.46 in

Product Length

0.86 in

Color

Silver

Brand

Not branded

Works With

Primary Wire

UL / CSA

No

Termination Method

Crimp

Subject to Prop 65

No

Termination Material

Copper

Stud/Tab Size

1/4 in

SAE

No

Plating Material

Tin

Pack Type

Bag

Maximum Voltage

600 V

Insulation Material

Copper

Gauge

18, 20, 22

Application

General Purpose

SKU

166105, 166105-050, 166105-100, 166105-1000

Product Weight

0.002 lb

Country of Origin

Taiwan
