160504

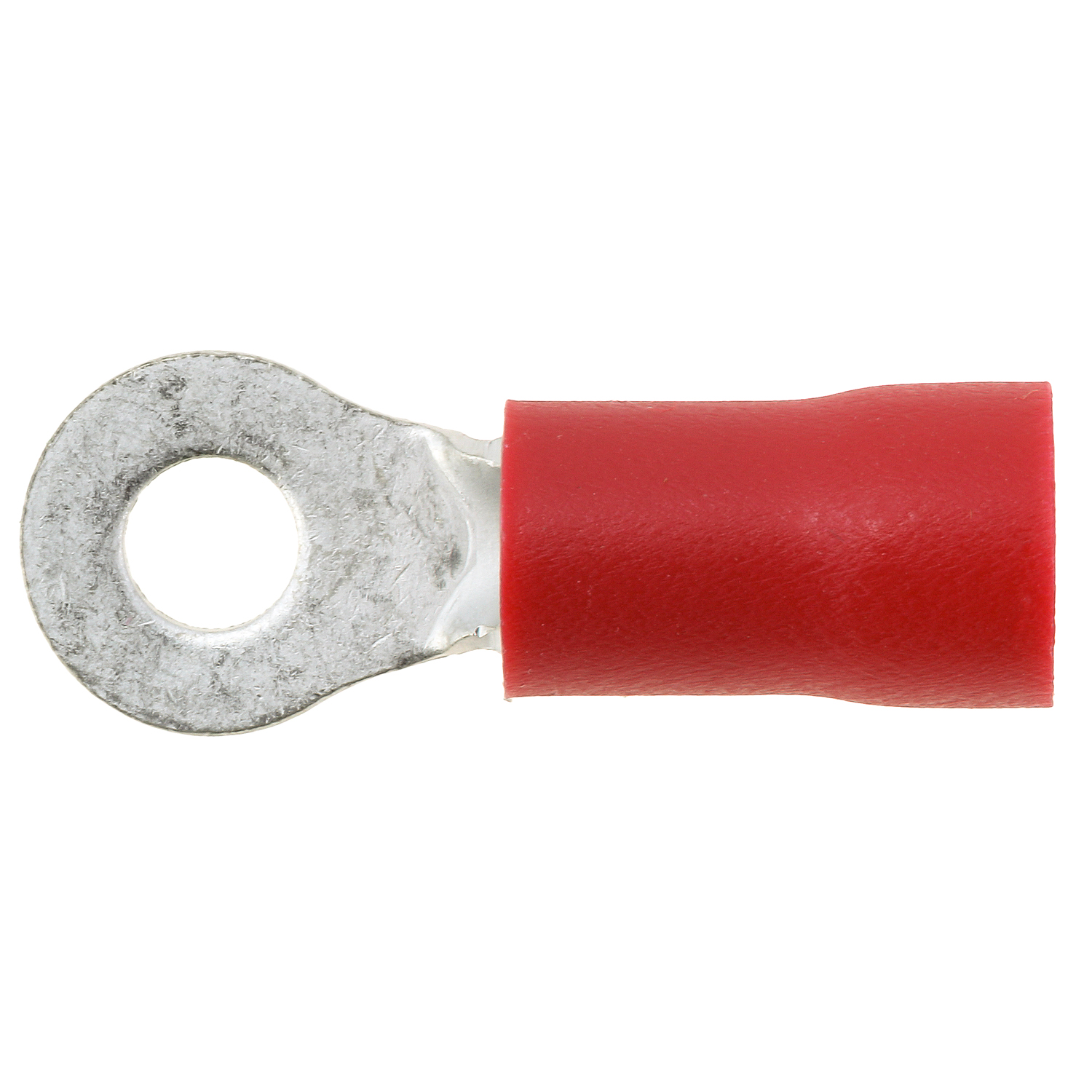

The PVC Insulated Solderless Ring Terminal has a serrated barrel for greater wire retention and pullout strength.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

160504 INFO Last Updated: 06/09/2022
160101-160680 SDS Last Updated: 06/09/2022

Specification Details

Parts per Unit

100, 25

Features

For general purpose applications, Ridged PVC sleeves for improved abrasion resistance, Serrated barrels for greater wire retention/pullout strength, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength

Application

General Purpose

Gauge

8

Insulation Color

Red

Insulation Material

PVC

Maximum Voltage

600 V

Pack Type

Bag

Plating Material

Tin

SAE

No

Stud/Tab Size

#10

Subject to Prop 65

No

Termination Material

Copper

Termination Method

Crimp

UL / CSA

No

Works With

Primary Wire

Brand

Not branded

Color

Red

Product Length

1.26 in

Product Width

0.47 in

Product Type

Ring Terminal

RoHS Compliant

Yes

SKU

160504, 160504-025, 160504-100

Product Height

0.33 in

Product Weight

0.004 lb

Country of Origin

Taiwan
