160479

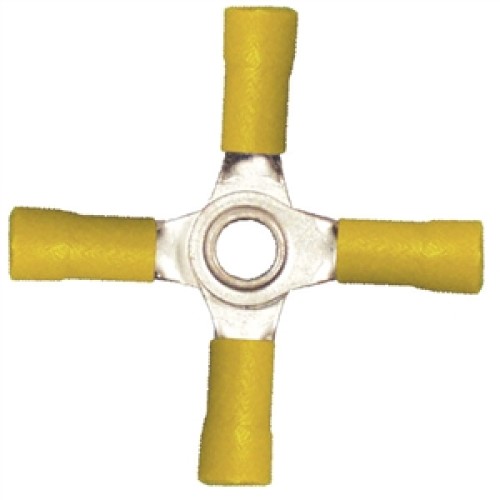

The PVC Solderless 4-Way Connector is tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
160101-160680 SDS
Last Updated: 06/09/2022
Specification Details
| Parts per Unit | 100, 25, 5 |
|---|---|
| Features | For general purpose applications, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength |
| Product Height | 0.25 in |
| SKU | 160479, 160479-025, 160479-100, 160479-2005 |
| RoHS Compliant | Yes |
| Product Type | 4-way Connector |
| Product Width | 1.71 in |
| Product Length | 1.71 in |
| Color | Yellow |
| Brand | Not branded |
| Works With | Primary Wire |
| UL / CSA | No |
| Termination Method | Crimp |
| Termination Material | Copper |
| Termination Count | 4 |
| Temperature Range (°F) | -67 to 221°F |
| Temperature Range (°C) | -55 to 105°C |
| Subject to Prop 65 | No |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Maximum Voltage | 600 V |
| Insulation Material | PVC |
| Insulation Color | Yellow |
| Gauge | 10, 12 |
| Application | General Purpose |
| Product Weight | 0.01 lb |
| Country of Origin | Taiwan |
