160478

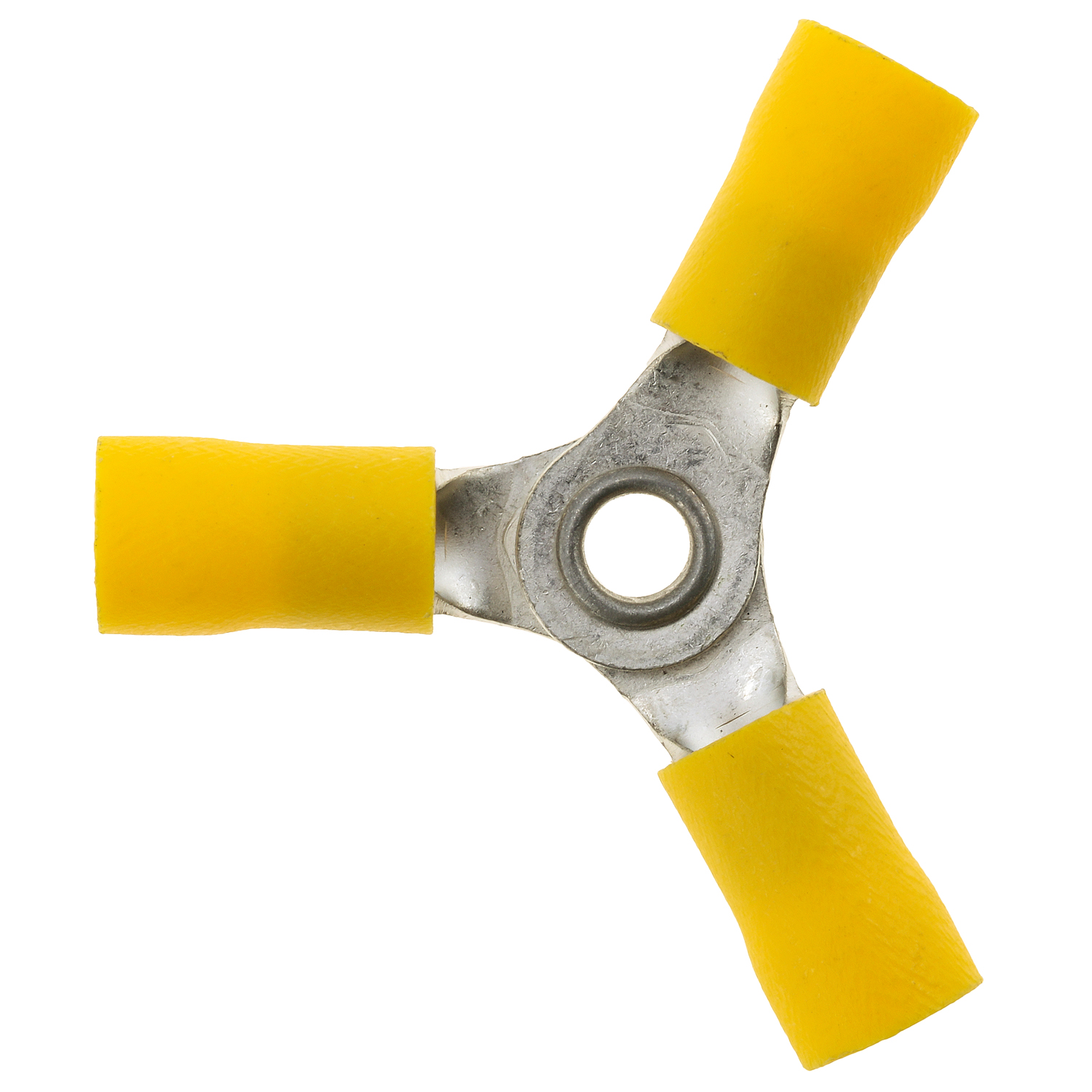

The PVC Solderless 3-Way Connector is tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

160101-160680 SDS Last Updated: 06/09/2022

Specification Details

Parts per Unit

10, 100, 25, 5

Features

#8 Stud, For general purpose applications, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength

Product Height

0.25 in

SKU

160478, 160478-025, 160478-100, 160478-2005, 160478-2010

RoHS Compliant

Yes

Product Type

3-way Connector

Product Width

1.73 in

Product Length

1.73 in

Color

Yellow

Brand

Not branded

Works With

Primary Wire

UL / CSA

No

Termination Method

Crimp

Termination Material

Copper

Termination Count

3

Temperature Range (°F)

-67 to 221°F

Temperature Range (°C)

-55 to 105°C

Subject to Prop 65

No

SAE

No

Plating Material

Tin

Pack Type

Bag

Maximum Voltage

600 V

Insulation Material

PVC

Insulation Color

Yellow

Gauge

10, 12

Application

General Purpose

Product Weight

0.001 lb

Country of Origin

Taiwan
