160285

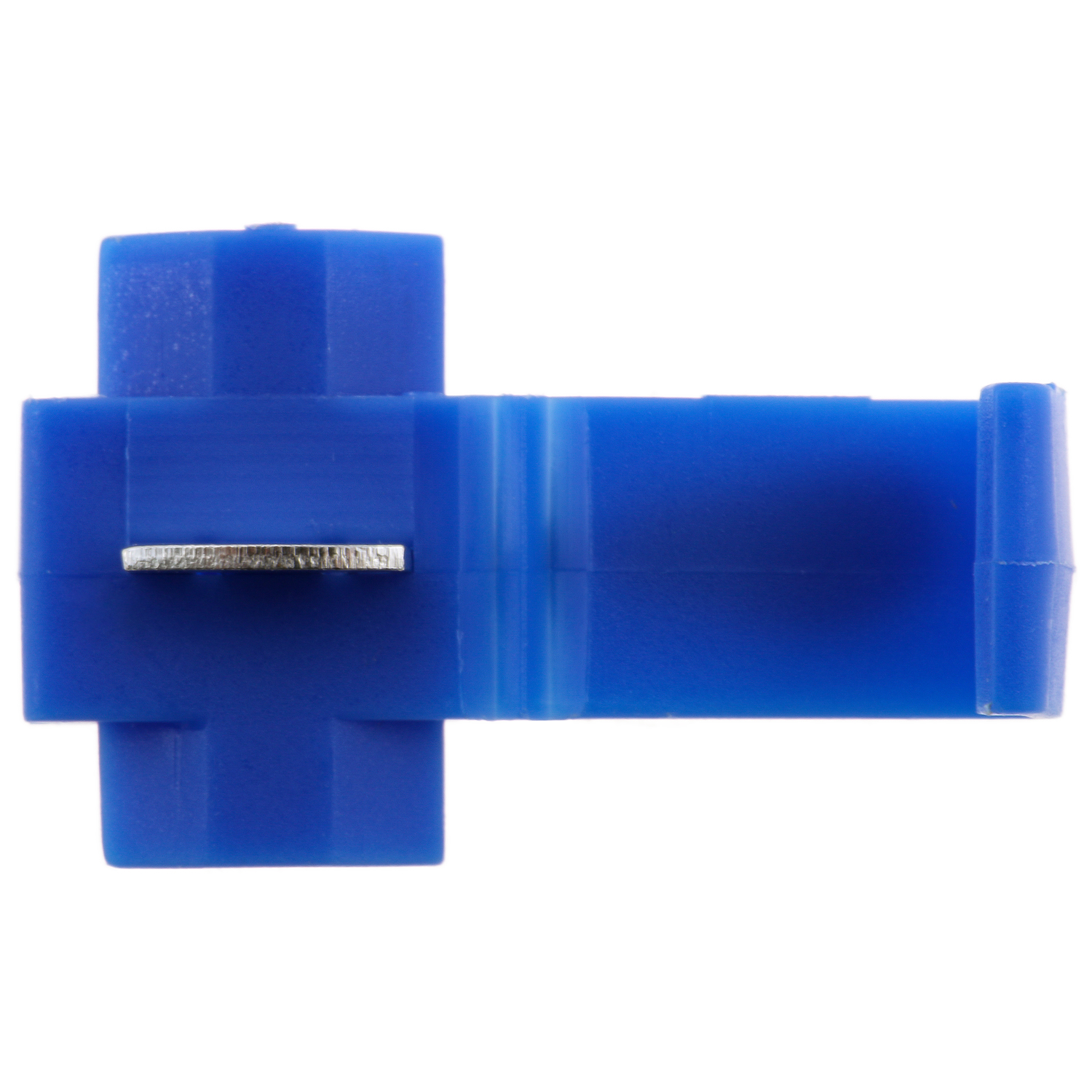

The PVC Insulated Solderless Quick Tap Connector is made of tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

160101-160680 SDS Last Updated: 06/09/2022

Specification Details

Parts per Unit

100, 1000, 25, 4

Features

For general purpose applications, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength

Product Height

0.99 in

SKU

160285, 160285-025, 160285-100, 160285-1000, 160285-2004, 160285-2025

RoHS Compliant

Yes

Product Width

0.27 in

Product Length

0.40 in

Color

Blue

Brand

Not branded

Works With

Primary Wire

UL / CSA

No

Termination Method

Blade Splice, Pressure Splice

Termination Material

Copper

Subject to Prop 65

No

SAE

No

Pack Type

Bag, Clamshell

Maximum Voltage

600 V

Insulation Material

Polypropylene

Gauge

14, 16

Application

Field Repairs

Product Weight

0.003 lb

Country of Origin

Taiwan
