160230

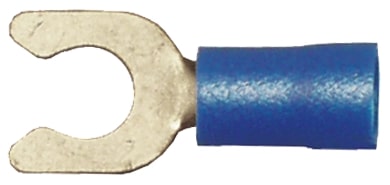

The PVC Insulated Solderless Locking Spade is made of tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

160101-160680 SDS Last Updated: 06/09/2022

Specification Details

Parts per Unit

100, 1000, 25

Features

Quality terminals for years of dependable service, Ridged PVC sleeves for improved abrasion resistance, Serrated barrels for greater wire retention/pullout strength, Tin plated annealed copper for improved corrosion resistance, max conductivity and crimp strength

Product Height

0.18 in

SKU

160230, 160230-025, 160230-100, 160230-1000, 160230-2100

RoHS Compliant

Yes

Product Type

Locking Spade

Product Width

0.28 in

Product Length

0.83 in

Color

Blue

Brand

Not branded

Works With

Primary Wire

UL / CSA

No

Termination Method

Crimp

Termination Material

Copper

Subject to Prop 65

No

Stud/Tab Size

#6

SAE

No

Plating Material

Tin

Pack Type

Bag

Maximum Voltage

600 V

Insulation Material

PVC

Insulation Color

Blue

Gauge

14, 16

Application

General Purpose

Product Weight

0.002 lb

Country of Origin

Taiwan
