160180

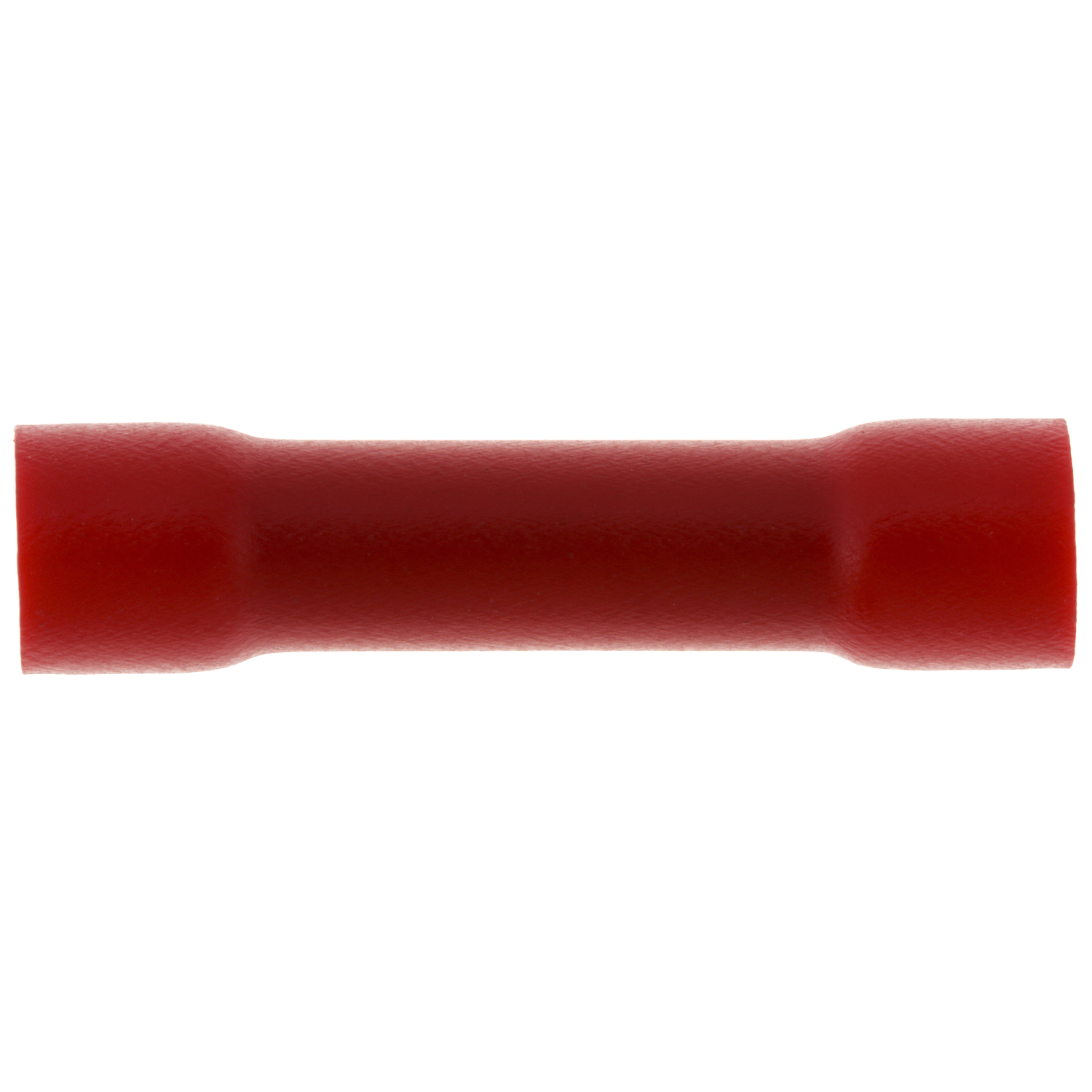

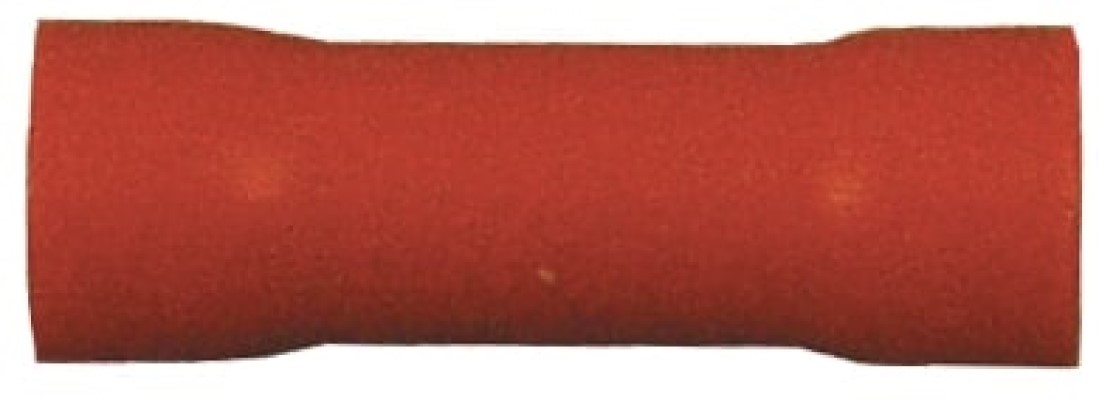

The PVC Insulated Solderless Butt Connector is made of tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

160180 INFO Last Updated: 06/09/2022
160101-160680 SDS Last Updated: 06/09/2022

Specification Details

Parts per Unit

10, 100, 1000, 50

Features

Quality terminals for years of dependable service, Ridged PVC sleeves for improved abrasion resistance, Serrated barrels for greater wire retention/pullout strength, Tin plated annealed copper for improved corrosion resistance, max conductivity and crimp strength

Product Height

0.16 in

SKU

160180, 160180-050, 160180-100, 160180-1000, 160180-2010, 160180-2100

RoHS Compliant

Yes

Product Type

Butt Connector

Product Width

0.16 in

Product Length

0.97 in

Color

Red

Brand

Not branded

Works With

Primary Wire

UL / CSA

Yes

Termination Method

Crimp

Termination Material

Copper

Subject to Prop 65

No

SAE

No

Plating Material

Tin

Pack Type

Bag

Maximum Voltage

600 V

Insulation Material

PVC

Insulation Color

Red

Gauge

18, 20, 22

Application

General Purpose

Product Weight

0.03 lb

Country of Origin

Taiwan
