160179

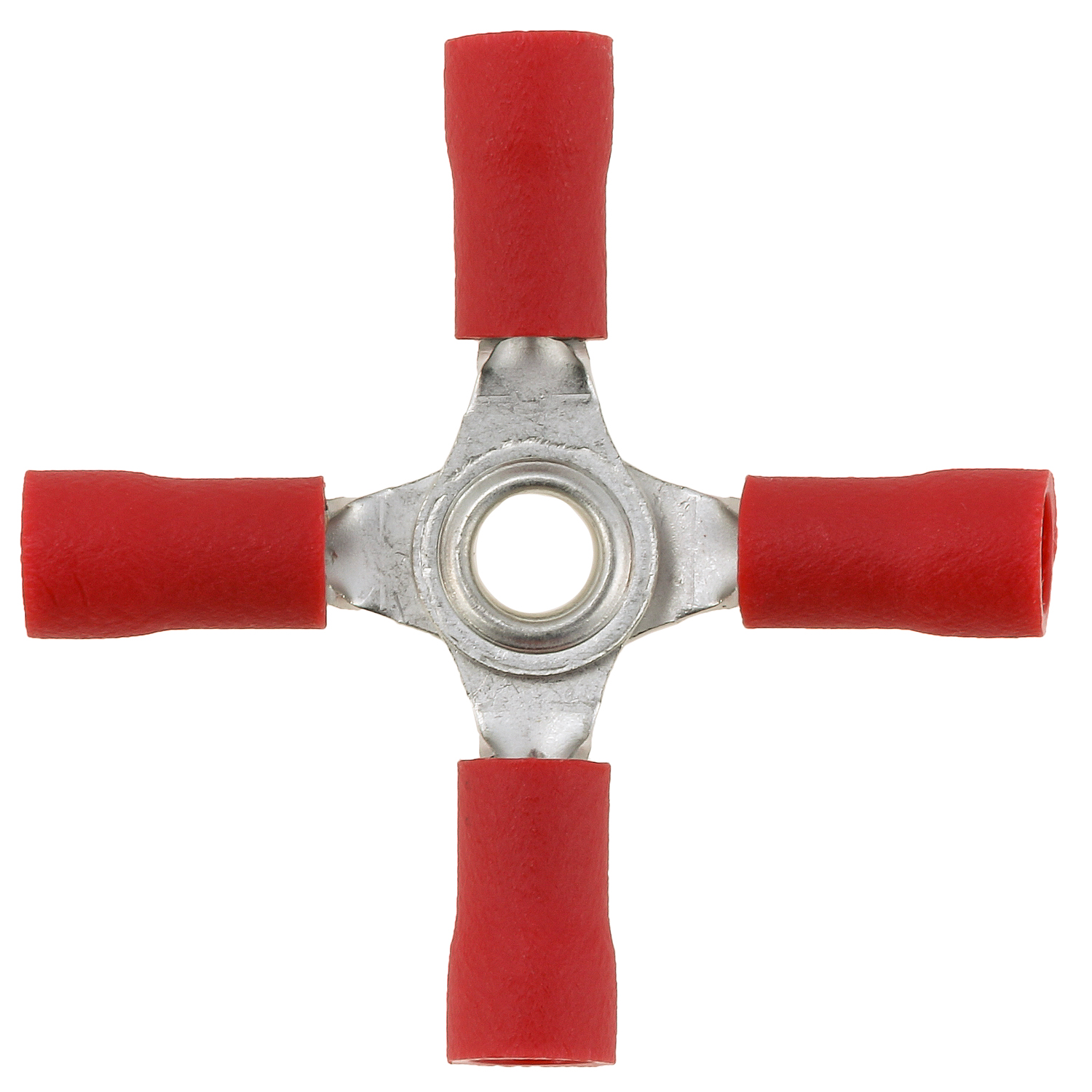

The PVC Solderless 4-Way Connector is tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
160101-160680 SDS
Last Updated: 06/09/2022
Specification Details
Parts per Unit | 100, 25 |
---|---|
Features | For general purpose applications, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength |
Application | General Purpose |
Gauge | 18, 20, 22 |
Insulation Color | Red |
Insulation Material | PVC |
Maximum Voltage | 600 V |
Pack Type | Bag |
Plating Material | Tin |
SAE | No |
Subject to Prop 65 | No |
Temperature Range (°C) | -55 to 105°C |
Temperature Range (°F) | -67 to 221°F |
Termination Count | 4 |
Termination Material | Copper |
Termination Method | Crimp |
UL / CSA | No |
Works With | Primary Wire |
Brand | Not branded |
Color | Red |
Product Length | 1.34 in |
Product Width | 1.34 in |
Product Type | 4-way Connector |
RoHS Compliant | Yes |
SKU | 160179, 160179-025, 160179-100 |
Product Height | 0.16 in |
Product Weight | 0.006 lb |
Country of Origin | Taiwan |
