160145

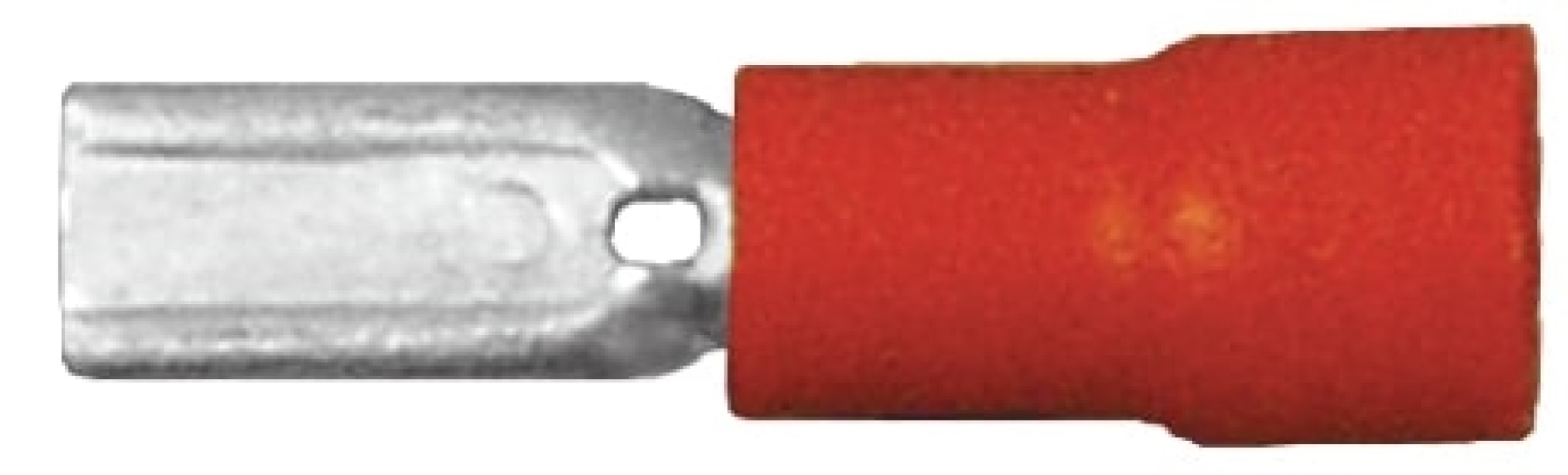

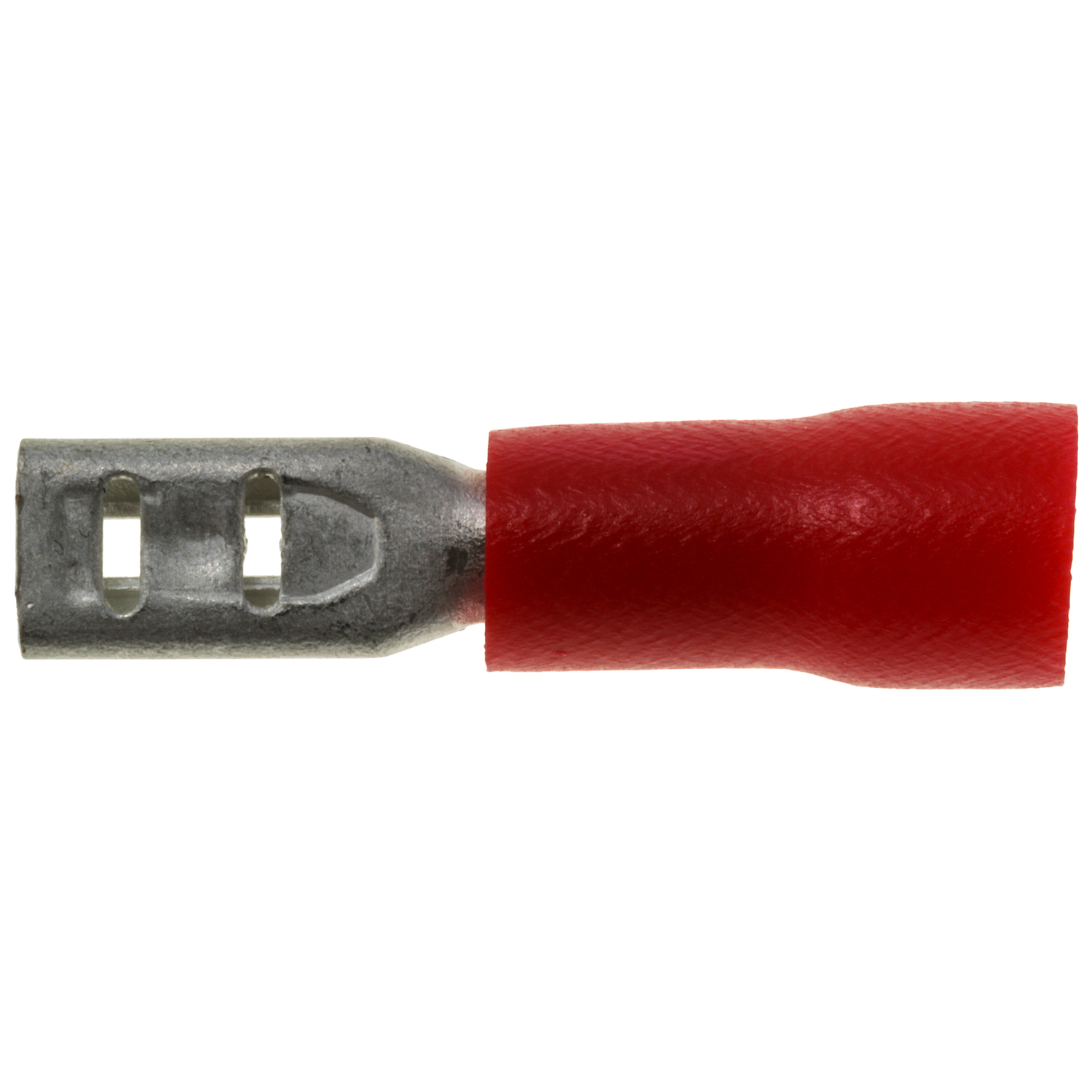

The PVC Insulated Solderless Female Disconnect is made of tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Downloads

160101-160680 SDS Last Updated: 06/09/2022

Specification Details

Parts per Unit

10, 100, 1000, 25

Features

For general purpose applications, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength

Product Height

0.16 in

Connector Gender

Female

SKU

160145, 160145-025, 160145-100, 160145-1000, 160145-2010, 160145-2100

RoHS Compliant

Yes

Product Width

0.13 in

Product Length

0.73 in

Color

Red

Brand

Not branded

Works With

General Purpose

UL / CSA

No

Termination Method

Crimp

Termination Material

Copper

Subject to Prop 65

No

Stud/Tab Size

0.11 in

SAE

No

Plating Material

Tin

Pack Type

Bag

Insulation Material

PVC

Gauge

18, 20, 22

Application

For general purpose applications

Product Weight

0.001 lb

Country of Origin

Taiwan
