127517

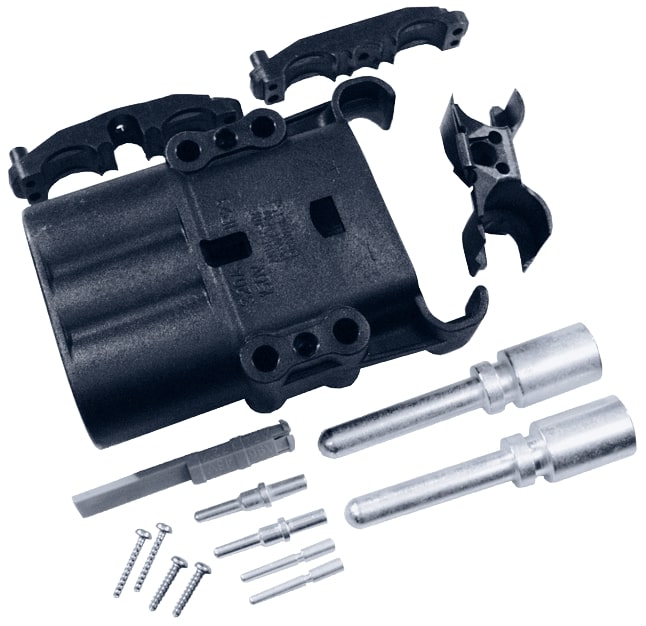

The DIN 320 Amp Male Connector Kit has a greater current-carrying capacity compared to standard SB® connectors.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

1

Features

DIN Connectors conform to specification DIN43589-1 except the cable barrel fits American Wire Gauge (AWG) cable instead of metric cable, Hexagon voltage key for 24, 365, 48, 72, 80, and 96 volt systems, Ideal for North American fast charging systems because DIN connectors have greater current carrying capacity compared with standard SB® connectors, In addition to two large round contacts, up to four auxiliary contacts can be used for battery monitoring and charger applications, Kits include connectors, housing, and auxiliaries (two 14/18 upper and two 14/18 lower auxiliaries)

Product Height

2.50 in

SKU

127517, 127517-001

RoHS Compliant

Yes

Product Type

Male 320 DIN Connector Kit

Product Width

2.80 in

Product Length

2.25 in

Color

Black

Brand

Not branded

Works With

DIN

UL / CSA

No

Temperature Range (°F)

-4 to 221°F

Temperature Range (°C)

-20 to 105°C

Subject to Prop 65

No

SAE

No

Pack Type

Bag

Gauge

1/0

Application

Industrial

Amps

320

Product Weight

0.70 lb

Country of Origin

USA
